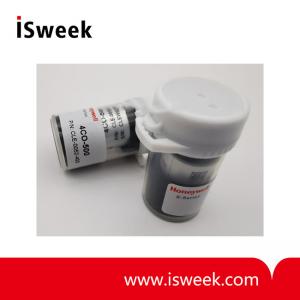

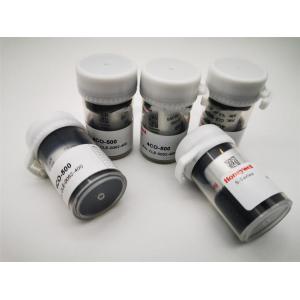

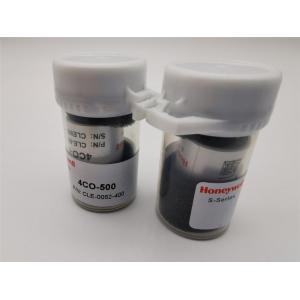

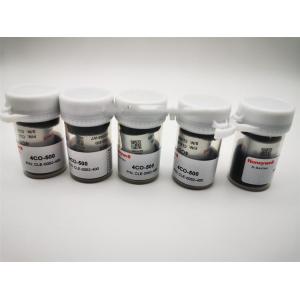

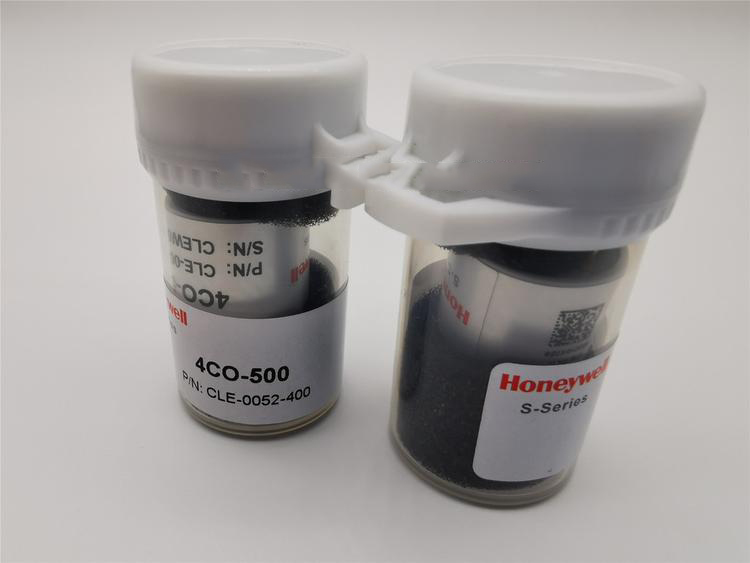

Carbon Monoxide Sensor - 4CO-500
Temperature Range： -20 oC to 50 oC
Operating Humidity：15 to 90 %RH non-condensing
Pressure Range：90 to 110 kPa
Bias Potential：0 mV
Storage Life：6 months in sealed container
- Model Number: 4CO-500
- Data Sheet:
- Quantity:
- - +
Product Specification
Performance Characteristics:
|
Part Number |
CLE-0052-400 |
|
Nominal Range |
0 to 500 ppm |
|
Maximum Overload |
2000 ppm |
|
Sensitivity |
0.070±0.015μA/ppm |
|
Baseline（20 ℃） |
<±0.2 μA |
|
Baseline Drift（-20 to 40 ℃） |
0 to 3 ppm equivalent |
|
Resolution |
1 ppm |
|
Response Time（T90） |
≤30 seconds |
|
Linearity |
Linear |
|
Long Term Output Drift |
< 2% signal/month |
Operation Conditions:
|
Temperature Range |
-20 ℃ to 50 ℃ |
|
Operating Humidity |
15 to 90 %RH non-condensing |
|
Pressure Range |
90 to 110 kPa |
|
Bias Potential |
0 mV |
|
Storage Life |
6 months in sealed container |
|
Storage Temperature |
0 ℃ to 20 ℃ |
|
Expected Operating Life |
3 years in air |
|
Warranty |
18 months from date of despatch |

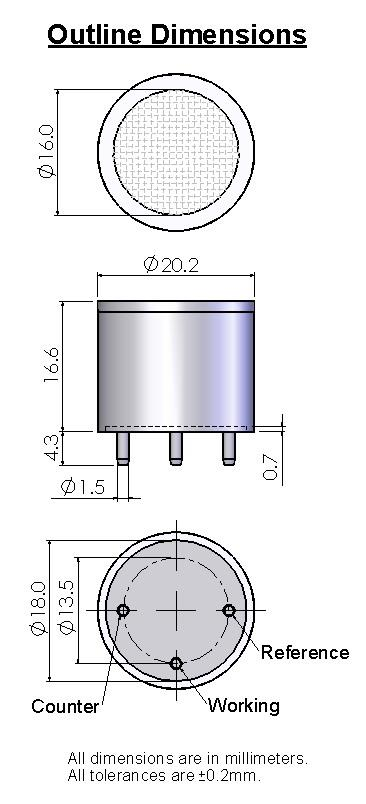

Physical Characteristics:
|
Weight |
5 g (approx) |
|
Orientation Sensitivity |
None |
