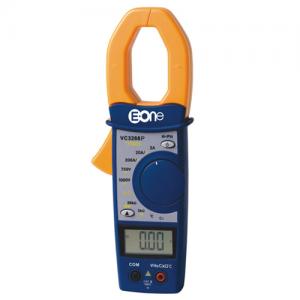

Clamp Power Meter - VC3268P
?Capacitance detecting
?Auto discharge function
?T-RMS function, effectively detect non-sine waveform
?Temperature measuring with semiconductor
?Data hold and peak value capture
?Digital phase sequence determine and phase position detect
?Relative value measuring(REL)
?Power measuring, power factor detect
?2A/20A/200A current measuring
- Model Number: VC3268P
- Quantity:
- - +
Product Specification
VC3268P Clamp Power Meter General Features
? Capacitance detecting
? Auto discharge function
? T-RMS function, effectively detect non-sine waveform
? Temperature measuring with semiconductor
? Data hold and peak value capture
? Digital phase sequence determine and phase position detect
? Relative value measuring(REL)
? Power measuring, power factor detect
? 2A/20A/200A current measuring
VC3268P Clamp Power Meter Specifications
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
1000V |
1V |
±(1.2%+3d) |
|
AC Voltage |
750V |
100mV |
±(1.2%+3d) |
|
AC Current |
20A/200A |
10mA/100mA |
±(2.0%+5d) |
|
Resistance |
3000Ω/30kΩ |
1Ω |
±(1.0%+3d) |
|
Frequency |
2kHz |
1Hz |
±(1.0%+5d) |
|
Active power |
5W~120kW |
0.1W |
±(3.0%+5d) |
|
Power factor |
0.02~1.00 |
0.01 |
±(3.0%+5d) |
|
Phase sequence(Live wire verification) |
45V-450V |
ABC/ACB |
|
|
Temperature |
-10℃~+150℃ |
0.1℃ |
±(1.0%+5d) |
