Earth Resistance Clamp Meter - MS2301
? Display 9999 counts
? Jaw Opening 45mm x 32mm / 1.8" x 1.3"
? Auto & Manual Ranging
? Logging and Recall 99 groups
? Setting Alarm Threshold in 1~100Ω
? Low Battery Display
? Buzzer ON Symbol
? Data Hold
- Model Number: MS2301
- Data Sheet:
- Quantity:
- - +
Product Specification

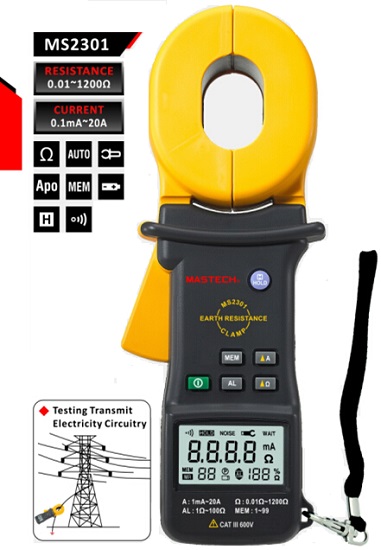

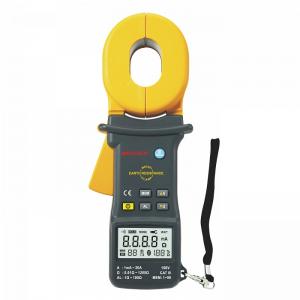

MS2301 - Earth Resistance Clamp Meter

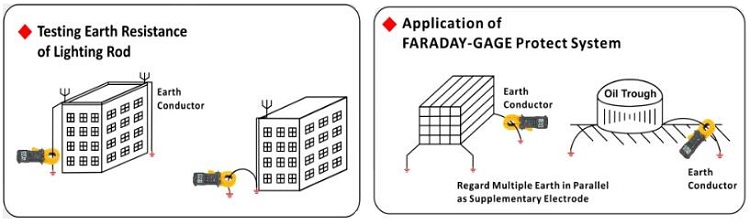

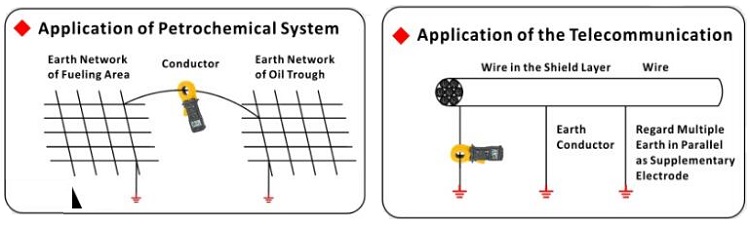

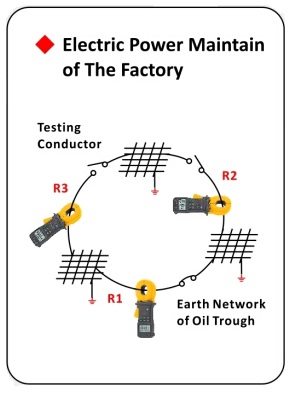

Clamp shape Earth Resistance Meter, get Ground resistance result safely and easily by clamping the ground line.
MS2301 Earth Resistance Clamp Meter Features
? Display 9999 counts
? Jaw Opening 45mm x 32mm / 1.8" x 1.3"
? Auto & Manual Ranging
? Logging and Recall 99 groups
? Setting Alarm Threshold in 1~100Ω
? Low Battery Display
? Buzzer ON Symbol
? Data Hold
MS2301 Earth Resistance Clamp Meter General Specifications
? Power Supply: 1 x 9V Alkaline Battery
? Product Size: 276mm x 104mm x 54mm/10.8" x 4.33" x 2.1"
? Product Weight: 1050g/2.31lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 150V

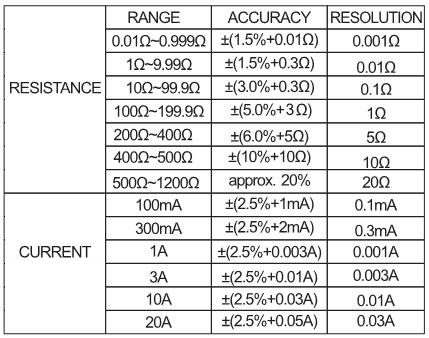

MS2301 Earth Resistance Clamp Meter Specifications
