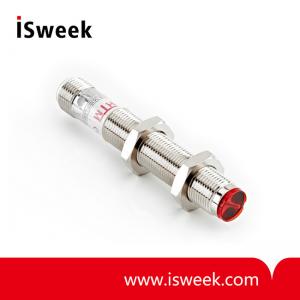

Cylindrical Photoelectric Sensor - M12 Series

? Power Supply: 10...30 VDC
? Current Consumption 30mA max.
? Response Time 1.5ms
? Mechanical Protection IP67 (IEC)
? Environment -25°C to +55°C; 35-85% RH
? Standard 12mm Housing
? Pre-wired or Quick Disconnect
? Self-contained Amplifier

Model Number: M12 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

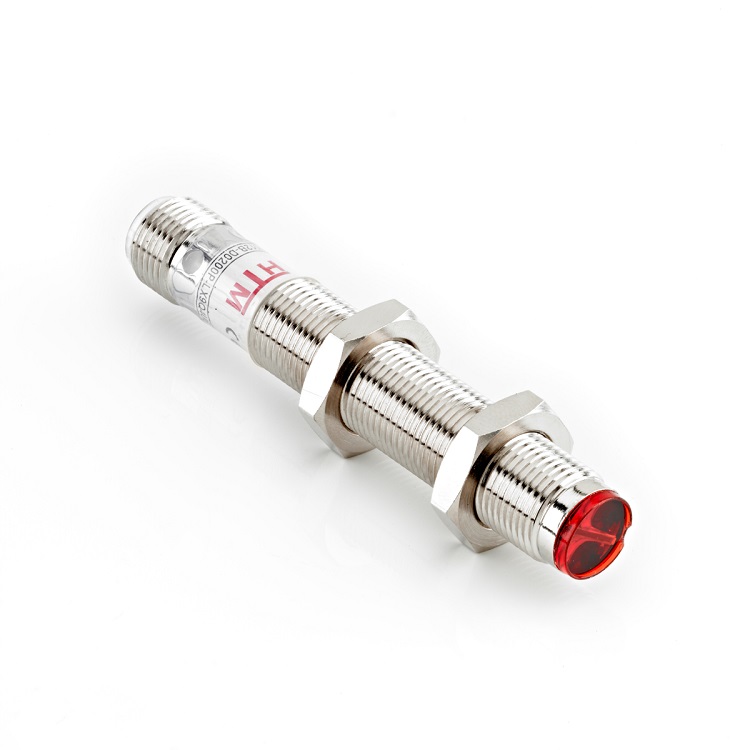

M12 Series Cylindrical Photoelectric Sensor Description
? Standard 12mm Housing
? Pre-wired or Quick Disconnect
? Self-contained Amplifier

Modes	Range
Through Beam	5.2m
Retroreflective	1m
Diffuse	200mm

M12 Series Cylindrical Photoelectric Sensor

	Through-beam	Diffuse	Retroreflective (Polarized)
Operating Range	5.2m (17.06 ft.)	0.2m (0.66 ft.)	1m (3.28 ft.)
Light Emission	880nm Infrared LED		660nm Red LED
Part Numbers
Emitter	M12B-T5200D-EX9Q4LE
NPN - Light/Dark	M12B-T5200N-CX9Q4UE	M12B-D0200N-CX9Q4UE	M12B-L1000N-CX6Q4UE-PF
PNP - Light/Dark	M12B-T5200P-CX9Q4UE	M12B-D0200P-CX9Q4UE	M12B-L1000P-CX6Q4UE-PF
Technical Data
Power Supply	10...30 VDC
Current Consumption	30mA max.
Indicator LEDs	Red LED (output activated)
Voltage Drop	2.5 V or less
Current Load Max	200mA
Response Time	1.5ms
Connection	M12 - Recommended Mating Cable: part # R-FS4TZ-V075 (straight), R-FA4TZ-V075 (right-angle)
Electrical Protection	Short-circuit, Reverse Polarity and Overload Current Protection
Mechanical Protection	IP67 (IEC)
Housing Material	Metal: Nickel-plated Brass; Plastic: PBT
Environment	-25°C to +55°C (-13°F to 131°F) ; 35-85% RH
Storage Temp.	-25°C to + 70°C (-13°F to +158°F)
Reference Standard	IEC 60947-5-2
