SMARTEYE COLORMARK ll Registration Mark Sensors - CMS Series

Product Specification

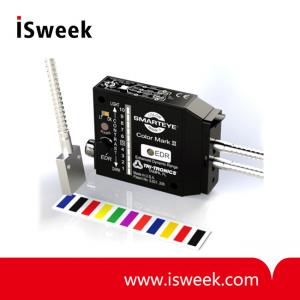

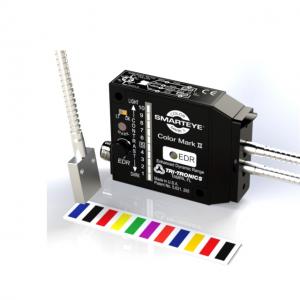

SMARTEYE COLORMARK ll Registration Mark Sensors?Description
The SMARTEYE COLORMARK ll Registration Mark Sensors combine unique color perception ability with very high speed response. Many important features have been incorporated into the design to meet the increasing demand for precision registration control on today’s higher speed packaging machinery. ?It provides extended operating ranges, enhanced background suppression and the elimination of saturation problems.

The specific task of a photoelectric registration mark detector is to respond to printed registration marks on packaging material as they pass through the sensor's light beam. The output of the sensor must switch when the mark arrives precisely in position for the control function to occur. The resolution of the exact location of each passing registration mark is keynote to ensure that the initiation of the electromechanical response triggered by the sensor is in synchronization with the arrival of the mark.

SMARTEYE COLORMARK ll Registration Mark Sensors?Features
? Built-in Connectors
? Waterproof Housings
? Clutch Knob Adjustment (Offset/EDR ? )
? Unique 10 LED Contrast Indicator
? Addition of EDR ? "Enhanced Dynamic Range" - eliminates hot spot glare effects. Works on the shiniest materials, including foils.
? Optional Pulse Stretcher guarantees a minimum of 10 milliseconds output- ample time for visual LED verification and for the control to respond.
? Choice of light source – green, red, blue, or white.

SMARTEYE COLORMARK ll Registration Mark Sensors?Benefits
? Minimizes downtime
? Flexible and accommodating for a variety of registration materials and marks
? Easily adjusted for optimum performance
? Very accurate and repeatable with unnoticeable migration from start up to full speed
? High Quality and High Reliability

SMARTEYE COLORMARK ll Registration Mark Sensors?Specifications

SUPPLY VOLTAGE	? 12 to 24 VDC ? Polarity Protected
CURRENT REQUIREMENTS	? 85 mA (exclusive of load)
OUTPUT TRANSISTOR	? (1) NPN and (1) PNP output?transistor ? NPN: Sink up to 150 mA ? PNP: Source up to 150 mA ? Momentary short circuit protected ? Output transistors turn “ON” when?mark is in view ? Anti-pulsing on power-up
RESPONSE TIME	? Minimum duration of input event: ? Light state response:?50 microseconds ? Dark state response:?140 microseconds ? Leading edge variation: less than?20 microseconds
HYSTERESIS	? Less than 400 millivolts for maximum?sensitivity and resolution
LED LIGHT SOURCE	? Choice of color: ? A. White - Broadband Spectrum?(CMSWL) ? B. Green - 550 nm (CMS) ? C. Blue - 480 nm (CMSB) ? D. Red - 660 nm (CMSR)
LIGHT IMMUNITY	? Pulse modulated to provide?extremely high immunity to?ambient light
PULSE STRETCHER TIMER (Optional)	? Provides minimum of 10 milliseconds?output duration
OFFSET/EDR CLUTCH KNOB?ADJUSTMENT	? Sets initial level on Contrast Indicator?in relation to mid-scale switch point?of 5 – functions as sensitivity?adjustment ? Controls Enhanced Dynamic Range?circuit (EDR) which functions?to avoid glare effect
LIGHT/DARK SWITCH	? Dark position for dark mark;?Light position for light mark
INDICATORS	? OUTPUT INDICATOR - Red LED?illuminates when output transistors?are "ON" ? EDR INDICATOR – Intensity of Green?LED provides indication of where in?the dynamic operating range the?offset / EDR adjustment has been set ? FULLY LIT: Operating near saturation ? OFF: Operating near maximum?sensing range ? CONTRAST INDICATOR –Displays?returned contrasting light?levels (background vs. mark)
AMBIENT TEMPERATURE	? -40°C to 70°C (-40°F to 158°F)
RUGGED CONSTRUCTION	? Chemical resistant, high impact?polycarbonate housing ? Waterproof, ratings: NEMA 4X, 6P?and IP67 ? Epoxy encapsulated for mechanical?strength

SMARTEYE COLORMARK ll Registration Mark Sensors?Modles & Ranges

1. Select Sensor Model based on LED light source required:
? ? CMS = Green
? ? CMSR = Red
? ? CMSB = Blue
? ? CMSWL = White

2. Select Pulse Stretcher required:
? ??-1B = 10ms Pulse Stretcher
? ? -2B = No Pulse Stretcher
? ? -2BT = with toggle switch

3. Select Optical Block based on mode of sensing required:
? ? F1 - Fiberoptic
????????? Range: 1/4" to 3/8" Proximity Mode
? ? ? ? ? ? ????????? 1/2" to 3" Opposed Mode
? ? V1G - 1" V-Axis Glass Lens
? ????????????Range: 1"
