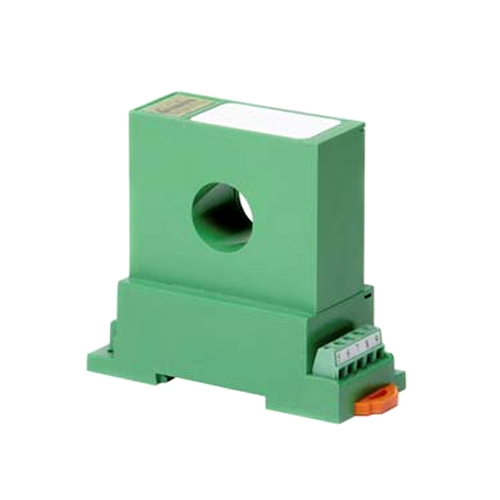

DC Hall Effect Current Transducer - 4-20 mA DC Output - CR5220

Product Specification

CR5220 DC Current Sensing Transducers are designed to provide a DC signal which is proportional to a DC sensed current. These devices are designed for direct current only, tartgeting them towards general and daily applications. The ranges 2 to 10 Amp utilize an advanced Magnetic Modulator technology and the ranges 20 amps and above utilize Hall Effect technology. The CR5220S has a 4-20mAdc output that is ideal for battery charging applications.

CR5220 DC Hall Effect Current Transducer Features
? Non-contact DC current sensing
? Closed loop sensing for accuracy
? 4-20 mA DC output
? Connection diagram printed on case
? DIN rail or panel mount

CR5220 DC Hall Effect Current Transducer Specifications
? Thermal Drift: 500 PPM/C
? Output Load: 0 - 300 Ω
? Operating Temperature: 0°C to +50°C
? Response Time: 250 ms
? Insulation Voltage: 2500 VDC
? MTBF: Greater than 100 K hours
? Supply Voltage: 24 VDC
? Frequency Range: DC Only
? Basic Accuracy: 1.0 %

CR5220 DC Hall Effect Current Transducer Applications
? Power supply management
? DC motor drives
? Battery chargers and systems
? Mobile applications

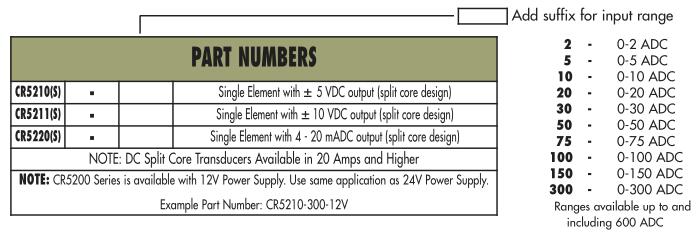

CR5220 DC Hall Effect Current Transducer PART NUMBERS
