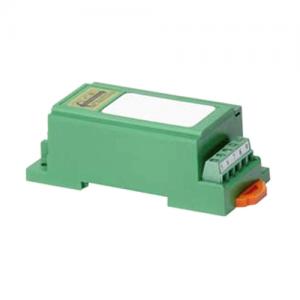

DC Voltage Transducer - 0-10 Vdc output - CR5311
? Voltage Type: DC Voltage
? Frequency: DC Frequency
? RMS: N/A
? Elements: Single Element
? Outputs: 0-10 VDC
? Power: 24 Vdc Power
? Mount: DIN Rail Mount,Panel Mount
? Output Load: 0-300 Ω
- Model Number: CR5311
- Data Sheet:
- Quantity:
- - +
Product Specification
CR5311 DC Voltage Transducers and Transmitters are designed to provide an output DC signal that is proportional to the input DC voltage. These devices are focused to provide an easy solution to DC voltage instrumentation needs.?
CR5311?DC Voltage Transducer?Features
? Outputs isolated from inputs
? DIN rail or panel mount
? Connection diagram printed on case
? 0 - 10 VDC output
CR5311?DC Voltage Transducer?Specifications
? Response Time: 250 ms
? Operating Temperature: 0°C to +50°C
? MTBF: Greater than 100 K hours
? Insulation Voltage: 2500 VDC
? Supply Voltage: 24 VDC
? Frequency Range: DC only
? Thermal Drift: 500 PPM/°C
? Output Load: 2 K Ω or Greater
? Basic Accuracy: 1.0%
CR5311?DC Voltage Transducer?Applications
? Mobile applications
? Power Supply over/under sensing
? Power sensing
? Battery chargers and systems

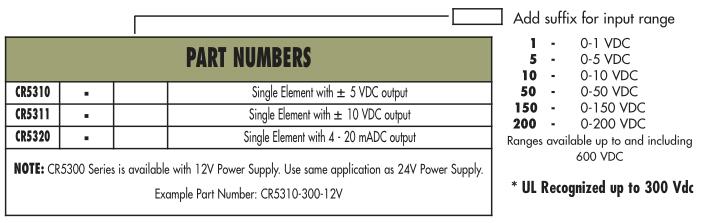

CR5311?DC Voltage Transducer?PART NUMBERS
