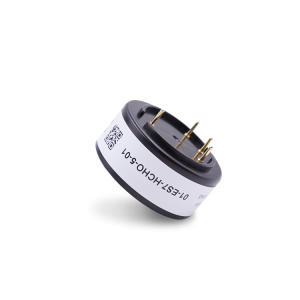

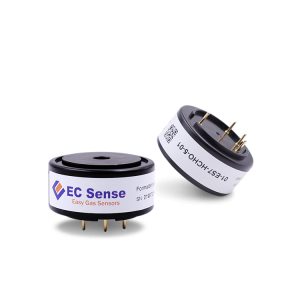

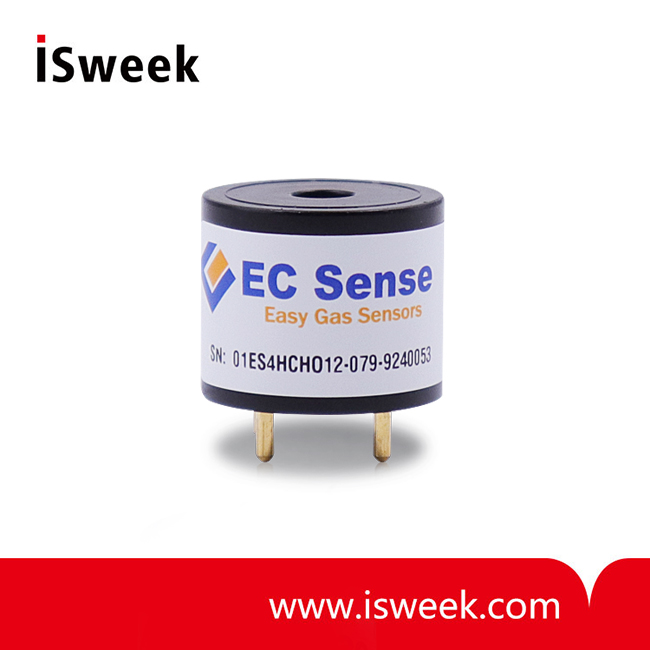

Easy Gas Sensor - ES4-HCHO-100
? Extreme linear response up to high concentration
? Fast response
? Low noise
? No electrolyte leakage
? Low cost at large volumes
? Individually calibrated including test report
- Model Number: ES4-HCHO-100
- Data Sheet:
- Quantity:
- - +
Product Specification
Easy Gas Sensor（ES4-HCHO-100- Formaldehyde）Features：
? Extreme linear response up to high concentration
? Fast response
? Low noise
? No electrolyte leakage
? Low cost at large volumes
? Individually calibrated including test report
Easy Gas Sensor（ES4-HCHO-100- Formaldehyde）Typical applications：
? TLV monitoring
? Indoor Air Aquality
Easy Gas Sensor（ES4-HCHO-100- Formaldehyde）Technical Specification：
|
Performance |
|
|
Sensitivity |
35±20 nA /ppm |
|
Zero current |
± 2 nA |
|
Range |
100ppm |
|
Repeatability |
1% Lower |
|
Environment |
|
|
Temperature Range |
-20 to 50°C |
|
Humidity Range (non condensing) |
10 to 95 % R.H |
|
Pressure Range |
800 to 1200hPa |
|
Operation |
|
|
Operating principle |
amperometric, 3-electrode |
|
Bias voltage |
0mV |
|
Recommended load resistor |
100? |
|
Warm up time |
< 20s |

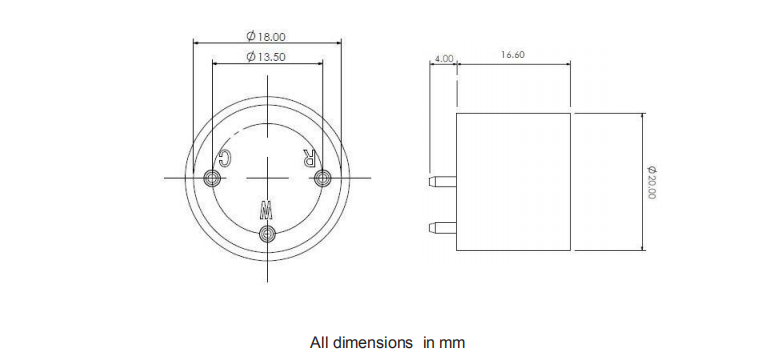

Easy Gas Sensor（ES4-HCHO-100- Formaldehyde）Dimensions：
