Electrochemical Formaldehyde Sensor (CH2O Sensor) - NE-HCHO-S

? Detection Gas: Formaldehyde
? Detection Range: 0 ～ 10 ppm
? Maximum Overload: 50 ppm
? Output Signal: 600 ± 150 nA/ppm
? Repeatability: ± 5 %
? Operating Temperature: -20 ～ 50°C
? Operating Humidity: 15 ～90 % RH
? Operating Pressure Range: 1atm ± 10 %

  • Model Number: NE-HCHO-S
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Electrochemical Formaldehyde Sensor (CH2O Sensor)
Mouse over image to zoom
Share:

Product Specification

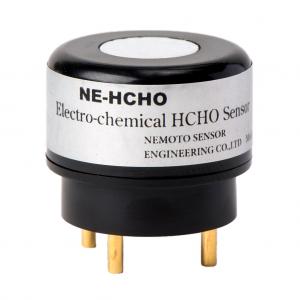

NE-HCHO-S Electrochemical Formaldehyde Sensor

NE-HCHO-S is a formaldehyde gas sensor, and is applicable for detecting and measuring formaldehyde generated from woody construction material or remained concentration after sterilization. It is applicable for various equipment.

NE-HCHO-S Formaldehyde Sensor (CH2O Sensor) Design Features
? High Sensitivity
? Stability
? High Reliability
? Linearity
? Low Power Consumption for Battery Operation

NE-HCHO-S Formaldehyde Sensor (CH2O Sensor) Specifications
Sensitivity Characteristics

Detection Gas
 Formaldehyde
Detection Range
 0 ～ 10 ppm
Maximum Overload
 50 ppm
Output Signal
 600 ± 150 nA/ppm
Repeatability
 ± 5 %
Typical Baseline Range (pure air)
 < ± 0.05 ppm
Typical Response Time (t90)
 < 120 sec. (HCHO : 1 ppm)
Baseline Shift (0 ～ 40°C)
 < 0.2 ppm
Expected Life Time
 Over 2 years

Operating Conditions
Operating Temperature
 -20 ～ 50°C
Operating Humidity
 15 ～90 % RH
Operating Pressure Range
 1atm ± 10 %
Recommended Load Resistor
 10 ?
Bias Voltage
 Not required
Position Sensitivity
 None
Recommended Storage Temp.
 0 ～ 20°C
Storage Life
 Less than 6 months

Physical Characteristics
Case Material
 PPO
Cap Color
 Black
Weight
 5 g (approx.)

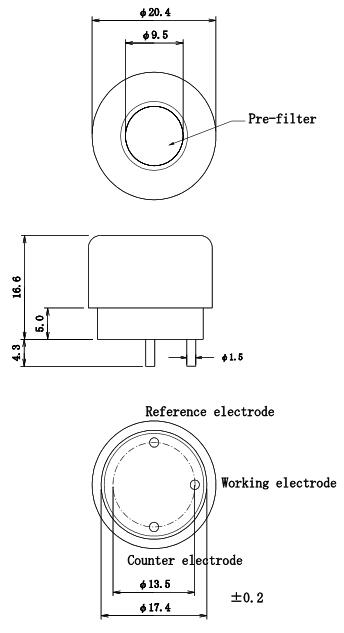

NE-HCHO-S Formaldehyde Sensor (CH2O Sensor) Appearance and Dimensions
