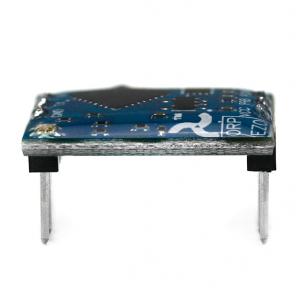

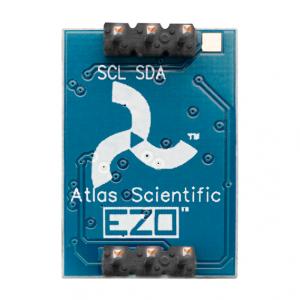

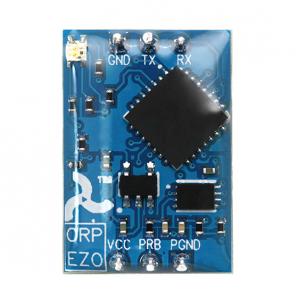

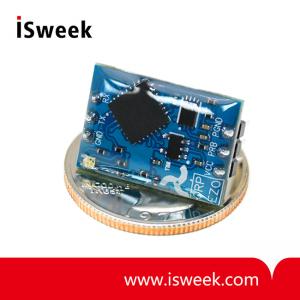

EZO ORP Circuit - EZO-ORP

? Reads: ORP
? Range: -1019.9mV ~ 1019.9mV?
? Accuracy: +/- 1mV?
? Max rate: 1 reading per sec?
? Data protocol: UART & I2C?
? Operating voltage: 3.3V - 5V?
? Data format?: ASCII?
? Circuit dimensions?: 13.97mm x 20.16mm (0.55" x 0.79")
? Weight?: 1.86 grams?

Model Number: EZO-ORP
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

EZO ORP Circuit

EZO-ORP EZO ORP Circuit Operating principle
ORP stands for oxidation/reduction potential. Oxidation is the loss of electrons and reduction is the gain of electrons. The output of the probe is represented in millivolts and can be positive or negative.

Just like a pH probe measures hydrogen ion activity in a liquid; an ORP probe measures electron activity in a liquid. The ORP readings represents how strongly electrons are transferred to or from substances in a liquid. Keeping in mind that the readings do not indicate the amount of electrons available for transfer.

EZO-ORP EZO ORP Circuit Dimensions

EZO-ORP EZO ORP Circuit Power consumption

	LED	MAX	STANDBY	SLEEP
5V	ON	18.3 mA	16 mA	1.16 mA
5V	OFF	13.8 mA	13.8 mA
3.3V	ON	14.5 mA	13.9 mA	0.995 mA
3.3V	OFF	13.3 mA	13.3 mA

EZO-ORP EZO ORP Circuit Absolute max ratings

Parameter	MIN	YP	MAX
Storage temperature (EZO? ORP)	-65 °C		125 °C
Operational temperature (EZO? ORP)	-40 °C	25 °C	85 °C
VCC	3.3V	5V	5.5V

EZO-ORP EZO ORP Circuit Specifiations

Reads	ORP
Range	-1019.9mV ~ 1019.9mV
Accuracy	+/- 1mV
Max rate	1 reading per sec
Supported probes	Any type & brand
Calibration	Single point
Temp compensation	N/A
Data protocol	UART & I2C
Default I2C address	98 (0x62)
Operating voltage	3.3V - 5V
Data format	ASCII
Circuit dimensions	13.97mm x 20.16mm (0.55" x 0.79")
Weight	1.86 grams
