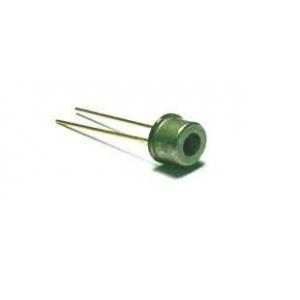

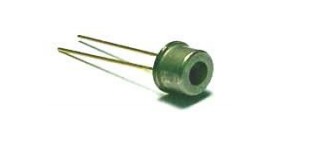

Far UV Sensor - GFUV-T10GD-L
Aluminium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Solar Blindness
- Model Number: GFUV-T10GD-L
- Quantity:
- - +
Product Specification
GFUV-T10GD-L Used for 172nm vacuum UV detection
GFUV-T10GD-L Far UV Sensor Features：
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Solar Blindness
Excimer Lamp Monitoring
GFUV-T10GD-L Far UV Sensor Absolute Maximum Ratings：
|
Parameter
|
Symbol |
Min. |
Max. |
Unit |
Remark |
|
Storage Temperature |
Tst |
-40 |
90 |
℃
|
|
|
Operating Temperature |
Top |
-30 |
85 |
℃
|
|
|
Reverse Voltage |
Vr, max. |
|
2 |
v |
|
|
Forward Current |
If,max. |
|
1 |
mA |
|
|
Optical Source Power Range |
Popt
|
0.1μ |
100m |
W/? |
Excimer Lamp
|
|
Soldering Temperature |
Tsol |
|
260 |
℃ |
within 10 sec. |
