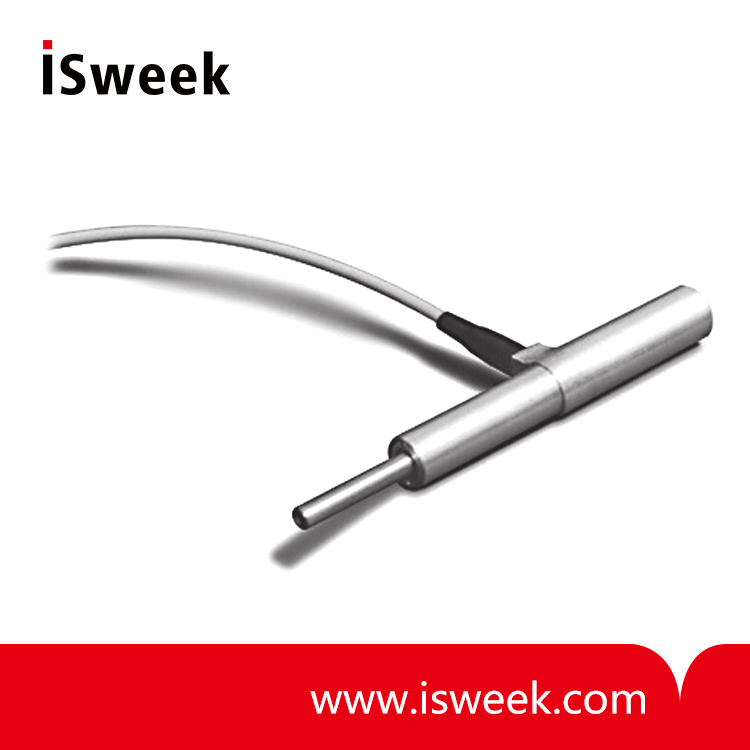

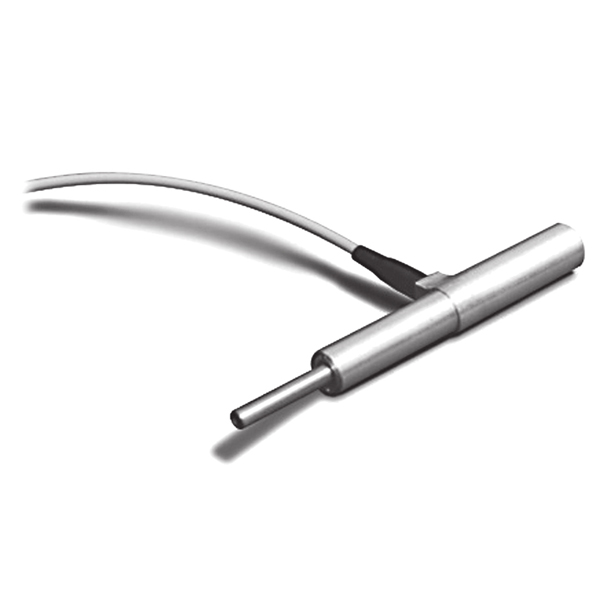

Fiber Optic Linear Position and Displacement Sensor - FOD

Product Specification

FOD Fiber Optic Linear Position and Displacement Sensor Description

The FOD is a fiber optic linear position and displacement sensor that provides high accuracy, absolute measurements of position and displacement. The FOD is well suited for difficult to reach locations and hazardous environments such as those containing explosive materials.

FOD Fiber Optic Linear Position and Displacement Sensor Specifications
1) Linear stroke : 20 mm (0.8 in)
2) Resolution: 0.002 mm (0.00008 in)
3) Accuracy: ±0.02 mm (0.0008 in)
4) Connector type: ST connector
5) Operating temperature : -20°C to 170°C ( -4°F to 338°F)

FOD Fiber Optic Linear Position and Displacement Sensor Features:
? Intrinsically safe
? Immune to EMI/RFI
? Up to 170°C (338°F)
? Resolution of up to 0.002 mm
? 20 mm linear stroke
? Aluminum or composite material housing

FOD Fiber Optic Linear Position and Displacement Sensor Applications:
? Microwave and RF environments
? In-situ process monitoring
? Harsh and hazardous environments
? High-temperature environments

FOD Fiber Optic Linear Position and Displacement Sensor Dimensions
