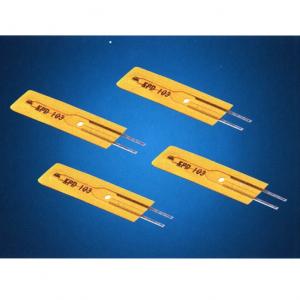

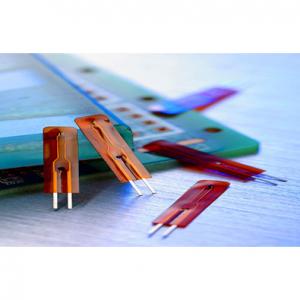

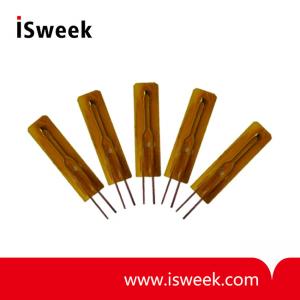

Film-Sealed NTC Thermistor Series Temperature Sensors - MF5E

Product Specification

MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Features

? Insulated membrane packaged,with fast thermal induction and high sensitivity.
? Good stability and high reliability.
? Good insulation.
? High precision of resistance value.
? Safe for use.
? Small volume,light weight and convenient for installing in narrow enviroment.

MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Purpose
? Temperature measurement.
? Temperature control.
? Temperature compensation.

MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Applicable scope
? Temperature, printer, household appliances.

MF5E Film-Sealed NTC Thermistor Series Description of Product Types and Specifications

(1) KPD — Abbreviations for KePengDa.
(2) MF — Indicates negative temperature coefficient thermistor.
(3) 5E — Temperature measurement film thermistor.
(4) 103 — Nominal resistance of thermistor, e.g. 103 indicates that the nominal resistance of the thermistor is 10*10³ (Ω).
(5) F — Resistance error (precision) of thermistor, e.g. F indicates the thermistors resistance value error (precision) is ± 1%.
(6) 338 — B_25/50 value of thermistor, e.g. 338 indicates the material factor B_25/50 value of the resistance is 338*10K.
(7) F — _B25/50 error (precision) of thermistor, e.g. F indicates B_25/50 error (precision) is ±1%.
(8) 25 — pin length, e.g. 25 indicates the type of pin length is 25mm.
 Note: R₂₅ precision: F (±1%), G (±2%), H (±3%), J (±5%), K (±10%).
          B_25/50 precision: F (±1%), G (±2%), H (±3%).

MF5E Film-Sealed NTC Thermistor Series Temperature Sensors Main Technical Parameters
