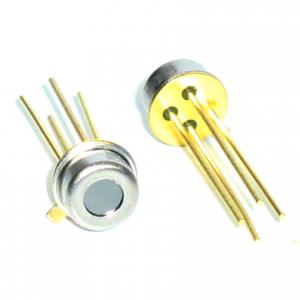

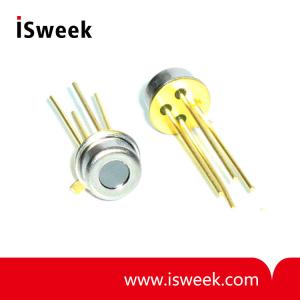

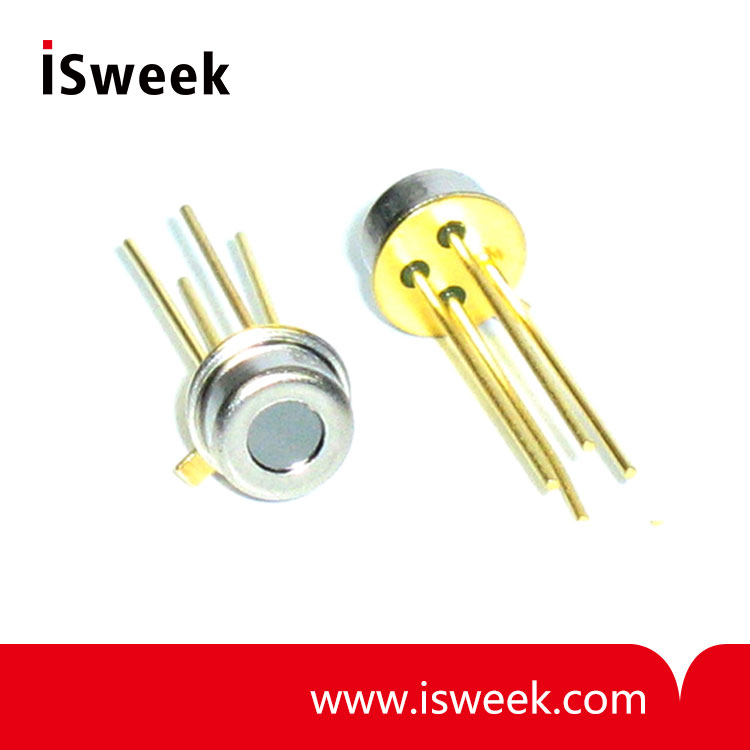

Infrared Thermopile Temperature Sensor - TS318-1B0814
? Thermopile IR-Sensor
? For Contactless Temperature Measurement
? Single Element
? Small Package for Ear Thermometer
? High Signal
? Flat Filter
? Accurate Reference Sensor
- Quantity:
- - +
Product Specification
TS318-1B0814 Infrared Thermopile Temperature Sensor DESCRIPTION
TS318-1B0814 used for contactless temperature measurement in many applications; transfer the heat radiation emitted from the objects into a voltage output.
TS318-1B0814 Infrared Thermopile Temperature Sensor Features
? Thermopile IR-Sensor
? For Contactless Temperature Measurement
? Single Element
? Small Package for Ear Thermometer
? High Signal
? Flat Filter
? Accurate Reference Sensor
TS318-1B0814 Infrared Thermopile Temperature Sensor FEATURES
? High Signal
? Ni-RTD Reference Sensor
? Small TO-18 Package
? 8-14μm Band Pass Filter for measurement distances >0.5m
TS318-1B0814 Infrared Thermopile Temperature Sensor APPLICATIONS
? Pyrometers (general)
? Industrial Pyrometers
TS318-1B0814 Infrared Thermopile Temperature Sensor ABSOLUTE MAXIMUM RATINGS
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Description |
Storage Temperature |
TS |
-20 |
+20 |
+85 |
°C |
permanent |
Storage Temperature |
TS |
-20 |
+20 |
+100 |
°C |
non permanent |
TS318-1B0814 Infrared Thermopile Temperature Sensor PERFORMANCE SPECS
Parameter |
Symbol |
Value |
Unit |
Condition |
Operating Ambient Temperature |
TAmb |
-20 to +85 |
°C |
permanent |
Operating Ambient Temperature |
TAmb |
-20 to +100 |
°C |
non permanent |
Package |
|
TO-18 |
|
|
Absorber Area |
A |
0.8 × 0.8 |
mm2 |
|
Thermopile Resistance |
RTP |
70 ± 30 |
kΩ |
TAmb = +25°C |
Temperature Coefficient of Thermopile Resistance |
TCRTP |
-0.06 ± 0.04 |
%/K |
TAmb = +25°C to +75°C |
Voltage Response |
VTP |
5.0 ± 1.3 |
mV |
TAmb = +25°C, TObj = +100°C, DC, totally filled field of view |
Temperature Coefficient of Voltage Response |
TCVTP |
-0.45 ± 0.08 |
%/K |
TAmb = +25°C to +75°C |
Noise Equivalent Voltage |
NEV |
34 |
nV/Hz? |
TAmb = +25°C |
Rise Time |
t63 |
12 ± 5 |
ms |
|
Ambient Temperature Sensor |
|
Ni-RTD |
|
|
Ambient Temperature Sensor Resistance |
RNi-RTD |
1000 ± 4 |
Ω |
TAmb = 0°C |
Temperature Coefficient of Ni-RTD |
TCNi-RTD |
6178 ±150 |
ppm/K |
TAmb = 0°C to +100°C |
