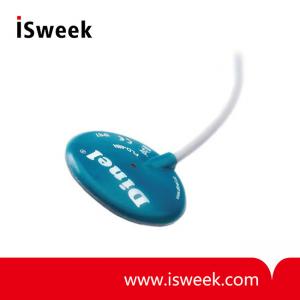

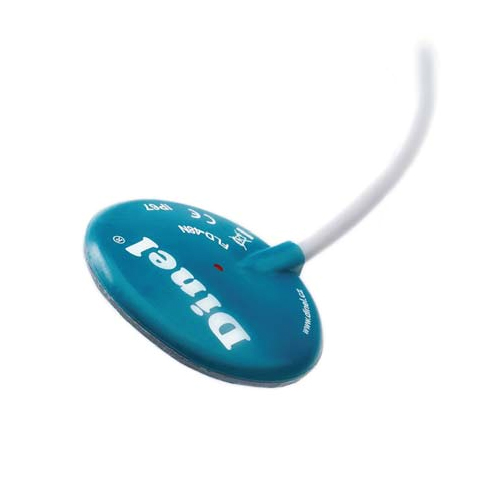

Flexible Level Sensor - FLD-48

Product Specification

Flexible level sensor FLD-48 "Meduse" is designed for detecting level of various liquids in non-conductive vessels. It is made from polyurethane fl exible housing with fl exible self adhesive layer, enabling simple attachment on fl at and mildly bent surfaces of the vessel walls. Special confi guration of the sensing surfaces and control by means of single-chip microprocessor enable reliable detection of the media and concurrent elimination of settled contamination on the internal side of the vessel. Setting of the sensor’s sensitivity is very – performed by attaching the programming wire on the positive or negative potential of the supply voltage. The sensor can be connected in the relay electrical circuit or on the control system binary inlet.

Flexible Level Sensor FLD-48 "Meduse" FEATURES
? For limit level sensing of liquids in non-conductive plastic and glass vessels
? Suitable for plastic containers tanks, plastic tanks, cans and basins, etc..
? Miniature design in flexible housing, can be located on mildly bent surfaces
? The electrode system eliminates contamination in the vessel internal side
? Simple self-adhesive fixing
? Configuration and adjustment by third "programming" wire
? LED state indication

Flexible Level Sensor FLD-48 "Meduse" TECHNICAL SPECIFICATIONS

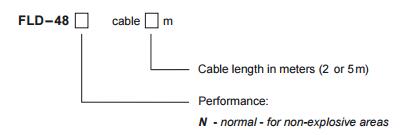

Flexible Level Sensor FLD-48 "Meduse" ORDER CODE
