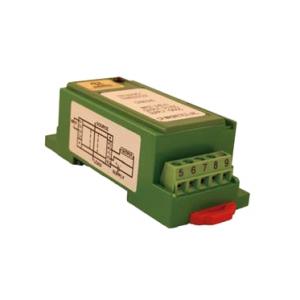

Frequency Transducer - Zero Crossover - CR6622
Operating Temperature: 0°C to +60°C
Frequency: AC Frequency
Outputs: 4-20 mA DC
Power: 24 Vdc Power
Sensing: Zero Crossover
Mount: DIN Rail Mount, Panel Mount
- Model Number: CR6622
- Data Sheet:
- Quantity:
- - +
Product Specification
CR6622 Frequency Transducers and Transmitters are designed to give a DC output that is proportional to an input frequency value. These devices are especially suited to multi-frequency applications.
CR6622 Frequency Transducer Features
? Connection diagram printed on case
? Outputs isolated from inputs
? Ranges available for any application
? Zero crossover waveform
? DIN rail or panel mount
CR6622 Frequency Transducer Specifications
? Operating Temperature: 0°C to +60°C
? Output Load: 4-20 mA DC: 0 - 300 ohm
? Supply Voltage: 24 VDC
? Insulation Voltage: 1500 VDC
? MTBF: Greater than 100 K hours
? Thermal Drift: 500 PPM/°C
? Basic Accuracy: 0.5%
? Input Voltage: 20 to 250 V Peak (other voltage ranges available)
? Response Time: 250 ms. 0-90% FS
? Frequency Range: 0 Hz to 2kHz
CR6622 Frequency Transducer Applications
? Power quality monitoring
? Applications monitor generator sets
? Multi-frequency control and monitoring
? Inverter drives and systems
CR6622 Frequency Transducer PART NUMBERS
|
CR6622 |
- | ____ |
Zero crossover sensing with 4 - 20 mADC Output |
100 - 0-100 Hz
500 - 0-500 Hz
5000 - 0-5000 Hz
other ranges available
