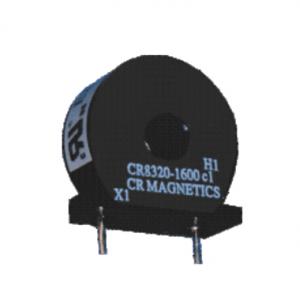

General Purpose Vertical PCB Mount Current Transformer - CR8320-1600
? Ground Faul: Ground Fault
? Application: Commerical (General Purpose)
? Mount: PCB Board Mount
? Construction: Epoxy Encapsulated
? Operating Temperature: -40°C to +85°C
? Stroage Temperature: -45°C to +85°C
? High Potential: 3500 Vac/1 min.
? Frequency: 20 Hz. to 1KHz
- Model Number: CR8320-1600
- Data Sheet:
- Quantity:
- - +
Product Specification
CR Magnetics CR8300 Series of PCB Mounted Current Transformers are available in a wide range of sizes and materials to meet any AC current sensing needs. Our General Purpose designs are made from the highest quality silicon steel cores available, and meet most of the common AC current measurement needs.
CR8320-1600 Vertical PCB Current Transformer Features
? Low cost
? 5 standard sizes
? Non-contact, isolated measurement
CR8320-1600 Vertical PCB Current Transformer Specifications
? Construction: Epoxy Encapsulated
? Operating Temperature: -40°C to +85°C
? Stroage Temperature: -45°C to +85°C
? High Potential: 3500 Vac/1 min.
? Frequency: 20 Hz. to 1KHz
CR8320-1600 Vertical PCB Current Transformer Applications
? Over/under current sensing
? Ground Faults
? Current measurements
? Power monitoring
