Hand-held UV-Meter / UV-LED-Meter - UV-Meter
? PTB-traceable results
? Wide range of sensors
? Data saving
? Two-channel measuring
? Control and evaluation of measurement data via PC or PLC
? UV-LED measuring head
- Quantity:
- - +
Product Specification
UV-Meter Description

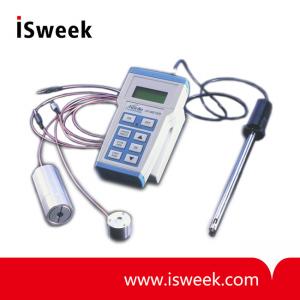

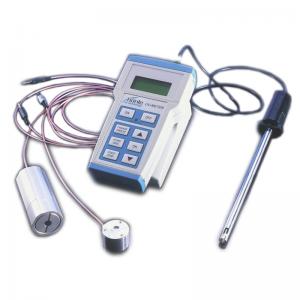

The hand-held H?nle UV-METER measures exact data that is traceable to the German standard PTB (Physikalisch Technische Bundesanstalt). The unit is available as a basic or high-end version. Different sensors cover wavelengths from 230 nm to 550 nm - UVC, UVB, UVA and VIS.
The UV-METER with its wide range of interchangeable sensors makes it suitable for different manufacturing processes. Sensors are available both for UV point sources and surface irradiation equipment.
UV-Meter System-Features
? PTB-traceable results
? Wide range of sensors
UV-Meter Optional
? Data saving
? Two-channel measuring
? Control and evaluation of measurement data via PC or PLC
? UV-LED measuring head
UV-Meter Advantages
? Cost saving – a single UV meter for all applications
? Measuring accuracy – the UV-METER is traceable to PTB standards
? Process reliability – constant control of UV-intensity ensures a consistent quality of UV-curing and -drying
? Certificated – reliable calibration with certificate
UV-Meter Application ranges
? for UV curing of inks and coatings
? for UV curing of adhesives and potting compounds
? for surface sterilisation via UVC radiation
Types of sensors
surface sensors |
|
spectrum |
maximum intensity |
UVC (230 nm - 285 nm) |
2 W/cm2 |
UVB (290 nm - 330 nm) |
2 W/cm2 |
UVA (330 nm - 400 nm) |
5 W/cm2 |
VIS (380 nm - 550 nm) |
2 W/cm2 |
LED (265 nm - 485 nm) |
20 W/cm2 |
|
|
light guide and quartz rod sensors |
|
spectrum |
maximum intensity |
UVC (230 nm - 285 nm) |
2 W/cm2 |
light guide sensor for UVA (330 nm - 400 nm) |
20 W/cm2 |
quartz rod sensor UVA (330 nm - 400 nm) |
5 W/cm2 |
VIS (380 nm - 550 nm) |
2 W/cm2 |
light guide sensor for LED (265 nm - 485 nm) |
20 W/cm2 |
