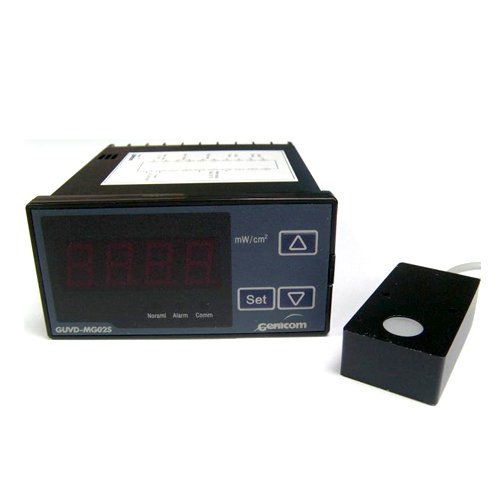

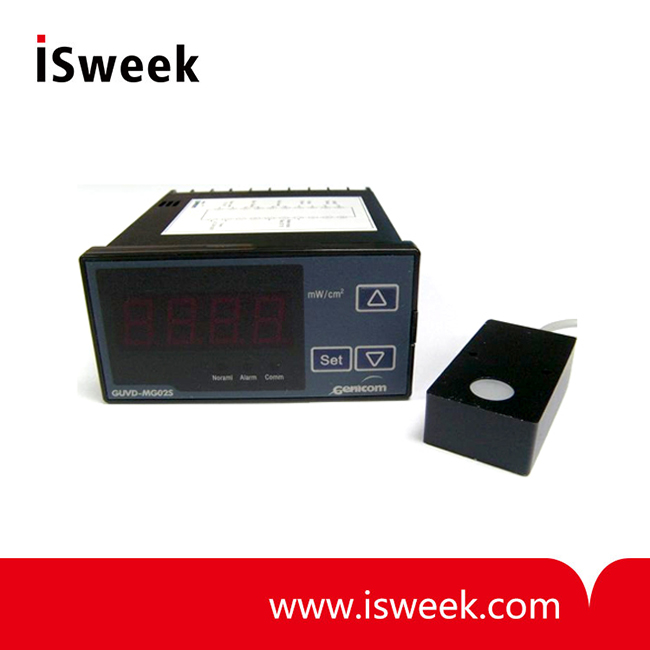

UV Radiometer 2.0 - GUVx-T1xGS2-2LA2
- Air Environments
- Operating Temperature: -30 ~ 85°C
- Power Consumption: Max 5VA
- Detection Power Range: 0~100?/?
- Detection Range:
GUVA-T11GS2-2LA2: 230~395nm
GUVB-T11GS2-2LA2: 220~320nm
GUVC-T10GS2-2LA2: 220~280nm
- Model Number: GUVx-T1xGS2-2LA2
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Air Environments, Display : Absolute Power, Output of Display : Relay, 4-20mA (Option), RS485 (Option)GUVx-T1xGS2-2LA2 UV Radiometer 2.0 Applications
UV Curing
GUVx-T1xGS2-2LA2 UV Radiometer 2.0 Constitution
Display, Sensor Probe

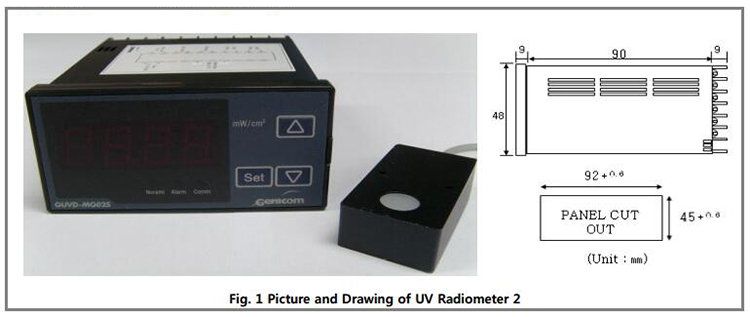

GUVx-T1xGS2-2LA2 UV Radiometer 2.0 Case Dimensions
|
Size (W×L×H, mm3)
|
Window (mm) |
Weight (g)
|
Case Material
|
Cable Length (m) |
| 55 x 30 x 16 | 12 | 57 | AL-60 | 5 |
GUVx-T1xGS2-2LA2 UV Radiometer 2.0 Absolute Maximum Ratings
|
Parameter |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max. | |||
|
Operating Temperature |
-30 |
|
85 |
°C |
Sensor Probe |
|
0 |
|
50 |
°C |
Display |
|
|
Power Consumption |
|
|
5 |
VA |
|
GUVx-T1xGS2-2LA2 UV Radiometer 2.0 Electro-Optical Characteristics (at 25°C)
|
Parameter |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max. |
||||
|
Detection Range |
GUVA-T11GS2-2LA2 |
230 |
|
395 |
nm |
|
|
GUVB-T11GS2-2LA2 |
220 |
|
320 |
nm |
|
|
|
GUVC-T10GS2-2LA2 |
220 |
|
280 |
nm |
|
|
|
Detection Power Range |
0 |
|
100 |
mW/cm2 |
|
|
