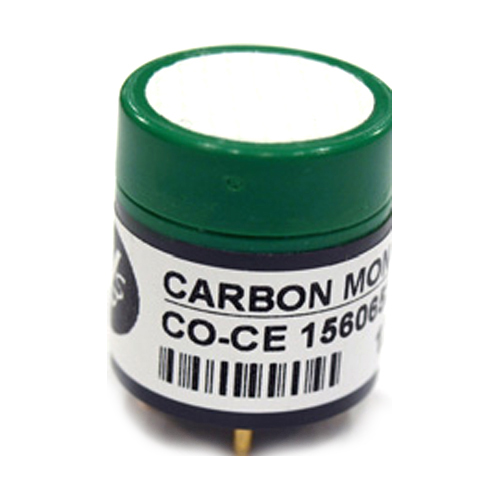

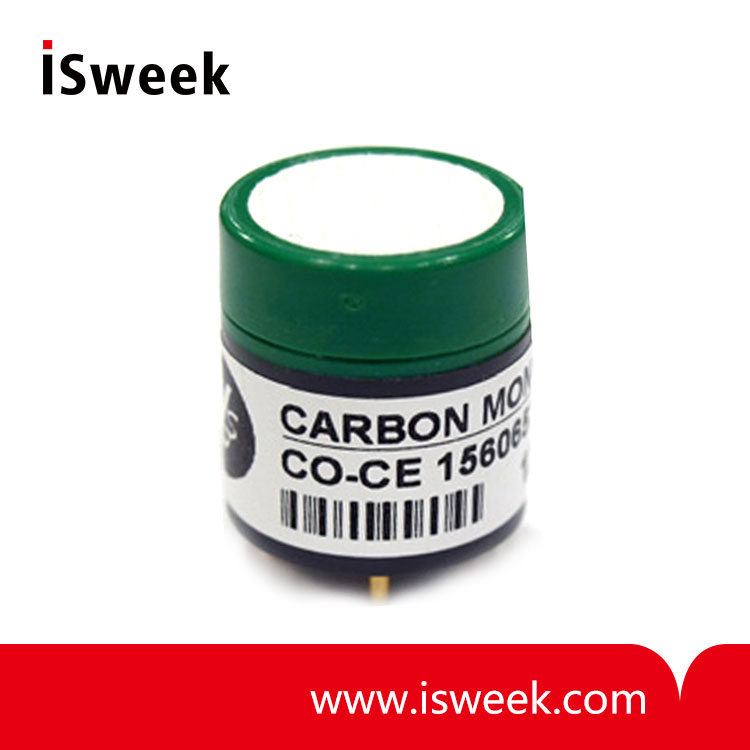

High Concentration Carbon Monoxide Sensor (CO Sensor) - CO-CE

? Range: 10,000 ppm CO limit of performance warranty
? Sensitivity: 10 to 25nA/ppm in 2,000ppm CO
? Response time t90: < 75s from zero to 2,000ppm CO
? Resolution: < 5 RMS noise (ppm equivalent)
? Temperature range: -30 to 50°C
? Pressure range: 80 to 120 kPa
? Humidity range: 15 to 90 % rh continuous
? Weight: < 8 g

Model Number: CO-CE
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CO-CE Carbon Monoxide Sensor (CO Sensor) Description
Alphasense Carbon Monoxide gas sensors operate using proven fuel cell technology.

CO-CE Carbon Monoxide Sensor size:
20mm diameter with extra height for additional filter material when measuring combustion gases

The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology.

CO-CE Carbon Monoxide Sensor (CO Sensor) PERFORMANCE
Sensitivity	nA/ppm in 2,000ppm CO	10 to 25
Response time	t90 (s) from zero to 2,000ppm CO	< 75
Zero current	ppm equivalent in zero air	< ± 20
Resolution	RMS noise (ppm equivalent)	< 5
Range	ppm CO limit of performance warranty	10,000
Linearity	ppm error at full scale, linear at zero and 2,000ppm CO	< 500
Overgas limit	maximum ppm for stable response to gas pulse	100,000

CO-CE Carbon Monoxide Sensor (CO Sensor) LIFETIME
Zero drift	ppm equivalent change/year in lab air	< 1
Sensitivity drift	% change/year in lab air, monthly test	< 4
Operating life	months until 80% original signal (24 month warranted)	> 24

CO-CE Carbon Monoxide Sensor (CO Sensor) ENVIRONMENTAL
Sensitivity @ -20°C	% (output @ -20°C/output @ 20°C) @ 400ppm CO	70 to 90
Sensitivity @ 50°C	% (output @ 50°C/output @ 20°C) @ 400ppm CO	102 to 112
Zero @ -20°C	ppm equivalent change from 20°C	< ± 3
Zero @ 50°C	ppm equivalent change from 20°C	< ±5

CO-CE Carbon Monoxide Sensor (CO Sensor) CROSS SENSITIVITY
Filter capacity	ppm-hours H2S	4,000,000
Filter capacity	ppm-hours NO2	10,000,000
Filter capacity	ppm-hours NO	2,000,000
Filter capacity	ppm-hours SO2	5,000,000
H2S sensitivity	% measured gas @ 20ppm H2S	< 0.1
NO2 sensitivity	% measured gas @ 10ppm NO2	< 0.1
NO sensitivity	% measured gas @ 50ppm NO	< 0.1
SO2 sensitivity	% measured gas @ 20ppm SO2	< 0.1
Cl2 sensitivity	% measured gas @ 10ppm Cl2	< 0.1
H2 sensitivity	% measured gas @ 400ppm H2 at 20°C	< 45
C2H4 sensitivity	% measured gas @ 400ppm C2H4	< 2
NH3 sensitivity	% measured gas @ 20ppm NH3	< 0.1

CO-CE Carbon Monoxide Sensor (CO Sensor) KEY SPECIFICATIONS
Temperature range	°C	-30 to 50
Pressure range	kPa	80 to 120
Humidity range	% rh continuous	15 to 90
Storage period	months @ 3 to 20°C (stored in sealed pot)	6
Load resistor	Ω (recommended)	10 to 47
Weight	g	< 8
