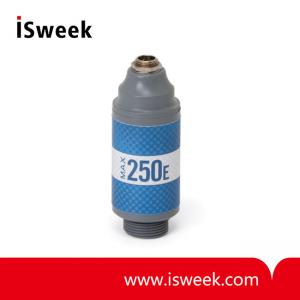

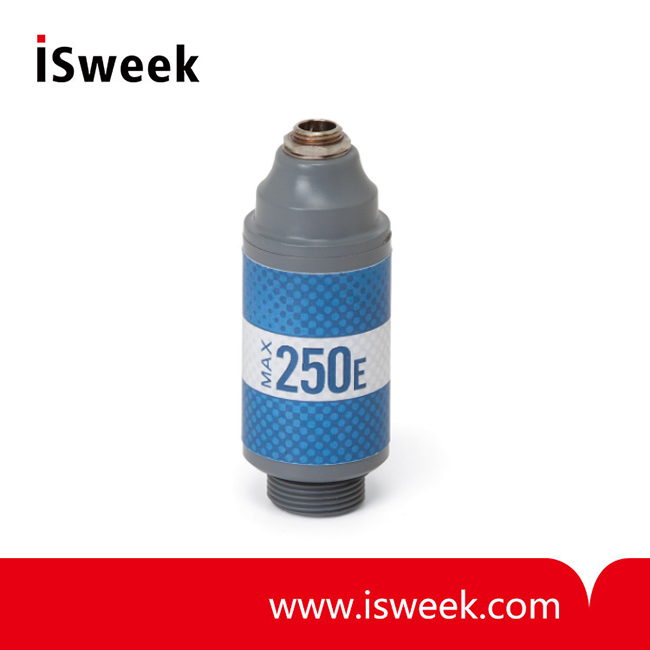

High Quality O2 Sensors - MAX-250E
? Output Range：10.0 to 15.5 mV
? ?Response Time：≤ 15 s
? ?Linearity：Within ± 1.0%
? ?Exp. Lifetime：> 1,500,000 %O2 hours
- Model Number: MAX-250E
- Data Sheet:
- Quantity:
- - +
Product Specification
High Quality O2 Sensors（MAX-250E）Specifications：
|
Output |
10.0 to 15.5 mV in air at 1013 millibar pressure and a temperature range of 23±2℃ |
|
Operating Temperature |
5℃ to 40℃ |
|
Maximum Storage Temperature |
-15℃ to 50 ℃ |
|
Optimal Storage Temperature |
5℃ to 25℃
|
|
Range of Measurement (Full Scale) |
0 to 100% oxygen |
|
Zero Offset |
Less than or equal to 0.50 mV when exposed to 99.9% to 100% nitrogen? |
|
90% Response Time |
Less than or equal to 15 seconds at 23±2℃ |
|
Linearity |
Within ± 1.0% of full scale |
|
Stability |
Less than 1% of full scale over an 8 hour period at constant temperature,pressure,and humidity |
|
Temperature Compensation |
Less than ± 3.0% from 15℃ to 40℃ |
|
Expected Life |
>1,500,000% oxygen hours under normal operating conditions |
|
Humidity |
5% to 95% Relative Humidity non-condensing |
High Quality O2 Sensors（MAX-250E）Interference：
? Less than 2% of full scale in presence of 75% Nitrous oxide?
? Less than 2% of full scale in presence of 5% Halothane
? Less than 2% of full scale in presence of 5% Isoflurane?
? Less than 2% of full scale in presence of 5% Enflurane
? Less than 2% of full scale in presence of 6% Sevoflurane
? Less than 2% of full scale in presence of 15% Desflurane
? Less than 2% of full scale in presence of 10% Caebon Dioxide?
? Less than 2% of full scale in presence of 70% Helium

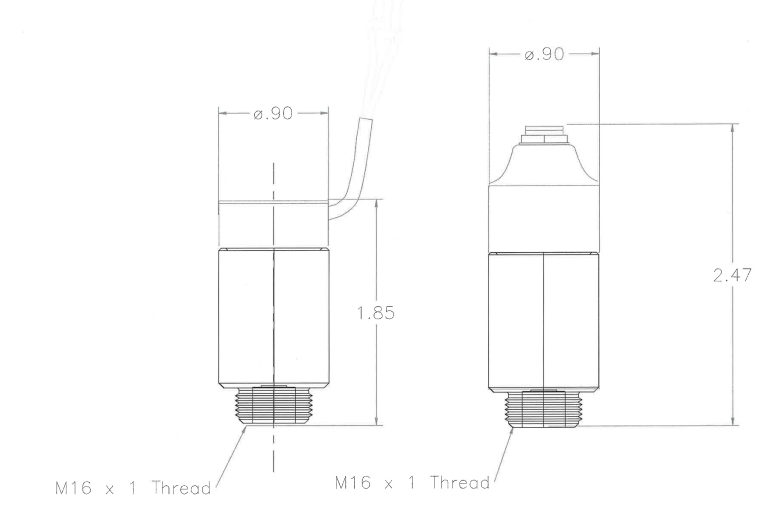

High Quality O2 Sensors（MAX-250E） Size：
