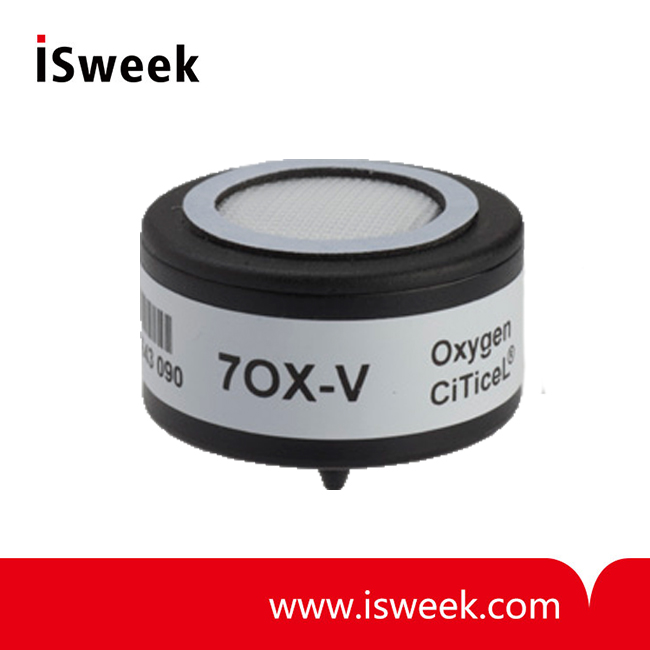

Oxygen(O2)Gas Sensor - 7OXV

? Robust, industry standard 7-Series packaging
? Compact size

  • Model Number: 7OXV
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Oxygen(O2)Gas Sensor
Mouse over image to zoom
Share:

Product Specification

7OXV Oxygen Gas Sensor Key Features and Benefits

? Robust, industry standard 7-Series packaging

? Compact size



7OXV Oxygen Gas Sensor Technical Specifications:

MEASUREMENT

Technology

Electrochemical

Measurement Range

0-25% vol. O2

Maximum Overload

30% vol. O2

Output Signal*

0.195 - 0.25 mA in Air

Response Time (T90)*

<15 Seconds

Offset (3 minutes N2)*

<0.5% vol. O2

Linearity

Can be considered linear in many cases.

See Operating Principles (OP-02) for further details.

ELECTRICAL

Recommended Load Resistor

100 ?

MECHANICAL

Weight

<34 g

Casing Material

ABS

ENVIRONMENTAL

Operating Temperature Range

-20°C to +50°C

Recommended Storage Temp

0°C to 20°C

Temperature Coefficient

0.2% signal / °C

Absolute Pressure Range

Atmospheric ± 10%

Differential Pressure Range

40 mBar maximum

Pressure Coefficient

<0.02% signal / mBar

Relative Humidity Range

Intermittent0 to 99%RH non-condensing

Continuous15 to 99%RH non-condensing

LIFETIME

Long Term Output Drift*

<5% signal / year

Expected Operating Life

2 years in air

Storage Life

6 months in original packaging

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
