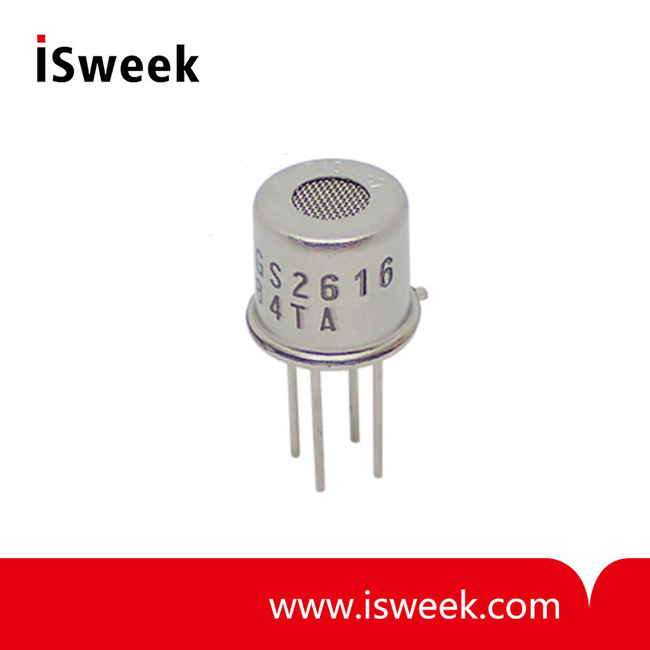

Hydrogen sensor - TGS 2616-C00
Features:
* High selectivity to hydrogen
* Small size and low power consumption
* Uses simple electrical circuit
- Model Number: TGS 2616-C00
- Data Sheet:
- Quantity:
- - +
Product Specification
The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater, and it is housed in a standard TO-5 package. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.
TGS2616-C00 has a newly developed sensing element which reduces the influence of interference gases such as alcohol, resulting in highly selective response to hydrogen.
Features:
* High selectivity to hydrogen
* Small size and low power consumption
* Uses simple electrical circuit
Applications:
*Hydrogen detection for:
- transformer oil maintenance
- steel plant safety, etc.
* Portable gas detectors
* Leak detection for gas appliances
* Hydrogen leak detectors for fuel cells

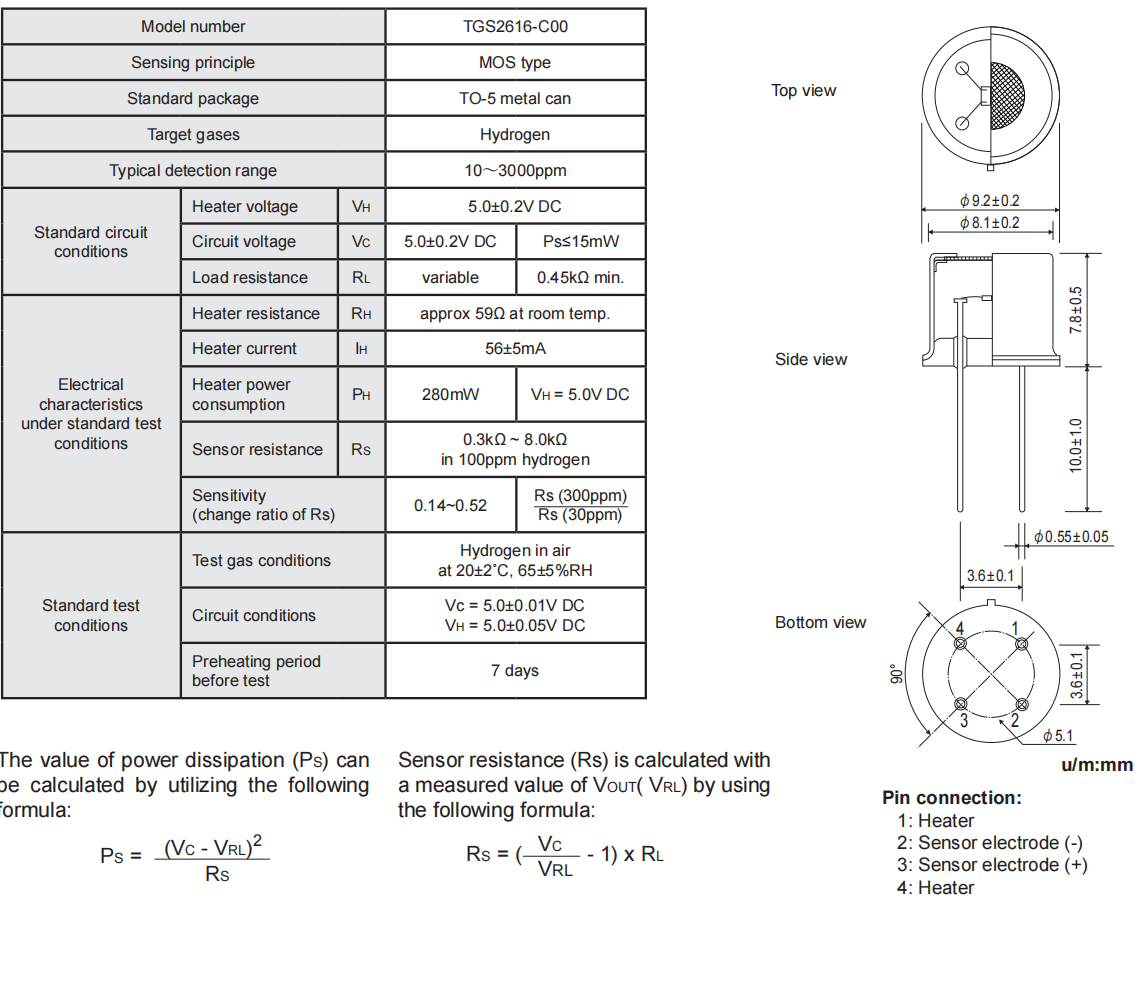

Specifications & Structure and Dimensions:
