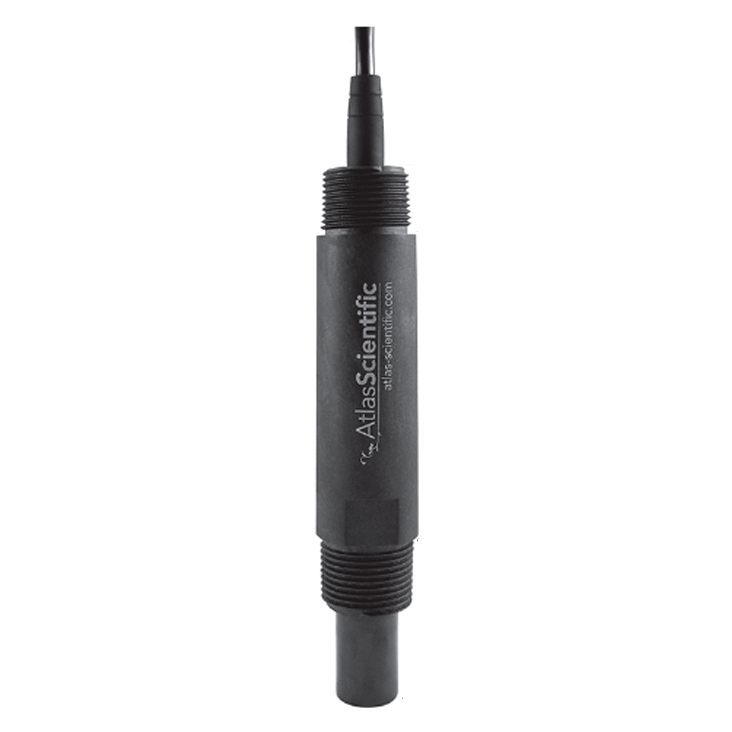

Industrial ORP Probe - ENV-50-ORP

? Reads: ORP?
? Range?: +/- 2000 mV?
? Response time?: 95% in 1s?
? Max pressure?: 100 PSI?
? Max depth?: 60m (197 ft)?
? Temperature range?: 1 - 99 °C?
? Cable length?: 3 meters?
? Body material?: Ryton thermoplastic?
? ?Weight?: 250 grams?

Model Number: ENV-50-ORP
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ENV-50-ORP Industrial ORP Probe Operating principle
ORP stands for oxidation/reduction potential. Oxidation is the loss of electrons and reduction is the gain of electrons. The output of the probe is represented in millivolts and can be positive or negative.

Just like a pH probe measures hydrogen ion activity in a liquid; an ORP probe measures electron activity in a liquid. The ORP readings represents how strongly electrons are transferred to or from substances in a liquid. Keeping in mind that the readings do not indicate the amount of electrons available for transfer.

When reading the ORP of a liquid that has very few electronics available for transfer ORP readings can appear to be inconsistent.

This Industrial ORP Probe can be fully submerged in fresh water or salt water, up to the tinned leads indefinitely.

ENV-50-ORP Industrial ORP Probe Specifications

Reads	ORP
Range	+/- 2000 mV
Response time	95% in 1s
Max pressure	100 PSI
Max depth	60m (197 ft)
Temperature range	1 - 99 °C
Cable length	3 meters
Internal temperature sensor	No
Time before recalibration	~1 Year
Life expectancy	~4 Years +
Maintenance	N/A
Body material	Ryton thermoplastic
Weight	250 grams
Threading	20mm (3/4") NPT
Sterilization	Chemical only
