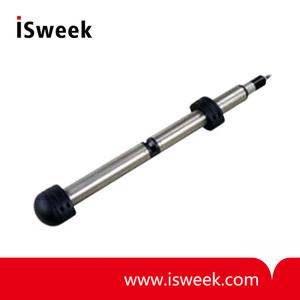

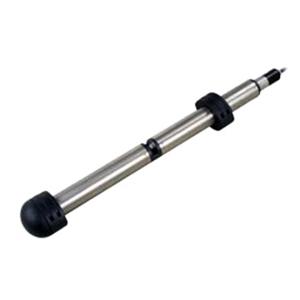

Integrated Optical Nitrate / Nitrite Nitrogen Sensor - NitraVis 701IQ
? Temperature: 0 ~ 40℃
? Pressure: <0.1MPa
? Power supply: ?24VDC or 220VAC ±10%?
? Output signal: ?Rs485(Modbus/RTU)?
? Installation: ?Input type?
- Model Number: NitraVis 701IQ
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
NitraVis 701IQ Nitrate / Nitrite Nitrogen Sensor Description
This product is an integrated optical nitrate / nitrite nitrogen analyzer, using ultraviolet absorption measurement principle, protection class IP68, can be installed directly into the formula, suitable for all occasions need to measure the nitrate, such as water treatment, aquaculture and other industries.
NitraVis 701IQ Nitrate / Nitrite Nitrogen Sensor Technical Specifications
|
Model |
NitraVis 701IQ |
NitraLyt 700IQ |
|
Measuring
range |
NO2-N (0.01~75.00)mg/L
NO3-N (0.1~150.0)mg/L
|
NO3-N (1~1000)mg/L |
|
Resolution |
NO2-N: 0.01mg/L
NO3-N: 0.1mg/L
|
NO3-N: 1mg/L |
|
Accuracy |
±3%F.S. |
±5%F.S. |
|
Temperature |
0 ~ 40℃ |
|
|
Pressure |
<0.1MPa |
|
|
Power supply |
24VDC or 220VAC ±10% |
|
|
Output signal |
Rs485(Modbus/RTU) |
|
|
Installation |
Input type |
|
