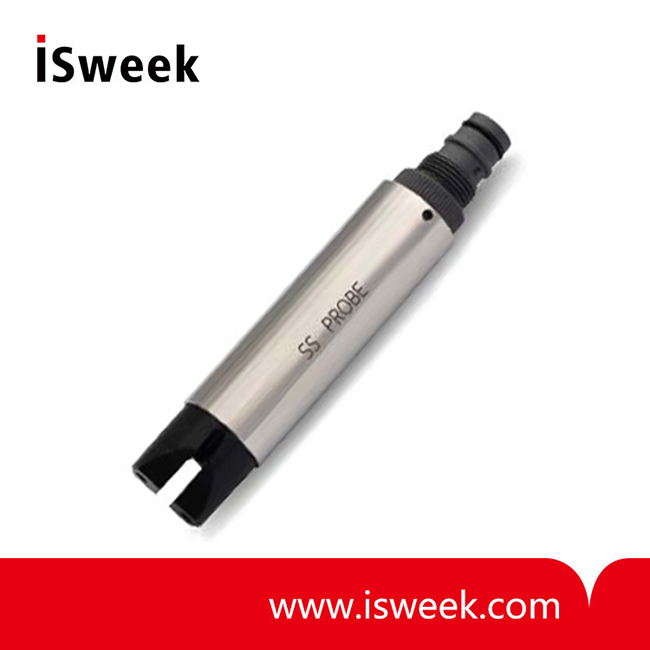

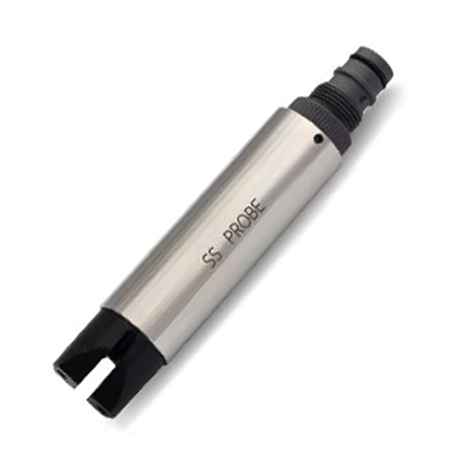

Integrated Optics Sludge Concentration Sensor - MLSS-720
? Measuring range: 0.01 ~ 15g/L?
? Resolution: 0.01g/L?
? Accuracy?: <10g/L: ±1%F.S.; >10g/L: ±5%F.S.?
? Temperature: -10 ~ 40℃?
? Pressure: <0.1MPa?
? Power supply: 7 ~ 16VDC ±10%?
? Output signal: Rs485(Modbus/RTU)
- Model Number: MLSS-720
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
MLSS-720 Integrated Sludge Concentration Sensor Description
This product is integrated optics sludge concentration transmitter, protection class IP68, can be directly into installation, high precision, suitable for all occasions sludge concentration to be measured, such as waste water treatment, sewage treatment and other industries.
MLSS-720 Integrated Sludge Concentration Sensor Technical Specifications
|
Model |
MLSS-720 |
|
Measuring range |
0.01 ~ 15g/L |
|
Resolution |
0.01g/L |
|
Accuracy |
<10g/L: ±1%F.S.
>10g/L: ±5%F.S.
|
|
Temperature |
-10 ~ 40℃ |
|
Pressure |
<0.1MPa |
|
Power supply |
7 ~ 16VDC ±10% |
|
Output signal |
Rs485(Modbus/RTU) |
|
Installation |
Input type |
