Korea GreenChip Capacitive touch IC - GTX312L
?12 channels cap. sensing input
Embedded GreenTouch3LPTM Engine
?Analog compensation circuit
?Embedded digital noise filter
?Intelligent sensitivity calibration
?Low power enhancer
- Model Number: GTX312L
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
The GTX312L is one of the GreenTouch3LPTM capacitive touch sensor series. Especially the GTX312L can do capacitance sensing with 12 channels under above GreenTouch3LPTM engine operation. Thanks to the GreenTouch3LPTM low power engine, a variety of battery powered applications can increase product usage time. Also based on the technology of the existing GreenTouch3TM engine, reliability can be secured against various noise and environmental changes.
The internal control registers are readable and writable using I2C interface.The GTX312L can be applied under wide supply voltage range from 1.8V to 5.5V. The CTRL pin of the GTX312L provides switchable chip ID that make a couple of chip parallel operations on the same I2C bus.
FEATURES:
12 channels cap. sensing input
Embedded GreenTouch3LPTM Engine
?Analog compensation circuit
?Embedded digital noise filter
?Intelligent sensitivity calibration
?Low power enhancer
I2C interface support
Provide interrupt function
Provide slide mode
Provide “REGISTER WRITING LOCK” function
Wide supply voltage range: 1.8V to 5.5V
?Single supply operation
Package type

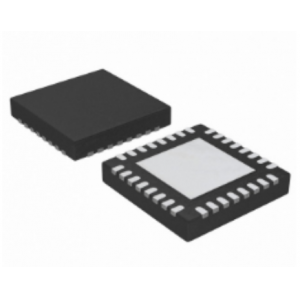

?QFN-32L (5.00x5.00x0.75,e=0.50)
RoHS compliant
APPLICATIONS:
Multi key application – Door lock, Remote controller and Etc.
Portable Electronics - Mobile phone, MP3, PMP, PDA,
Navigation, Digital Camera, Video Camera and Etc.
Multimedia Devices - Digital photo frame, Home theater system and Etc.
