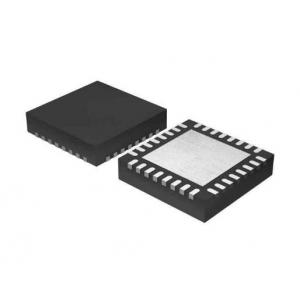

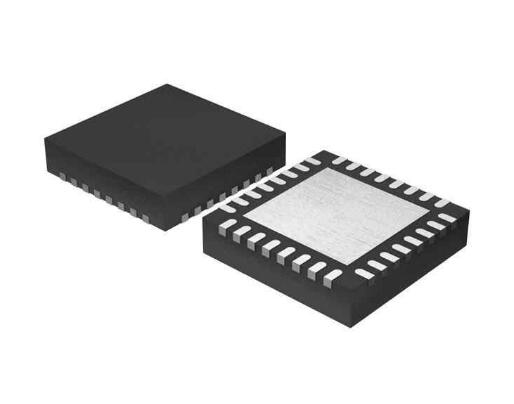

Korea Neofidelity Digital power amplifier - NTP8810A
2 CH Stereo (15W x 2 BTL @18V, 8Ω)
SDATA Generator (I2S output)
Wide Operating Supply Voltage Range (4.5V to 20V)
Floating Point Operation
- Model Number: NTP8810A
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
General Description：
The NTP8810A is a single chip full digital audio amplifier including power stage for stereo amplifier system. NTP8810A is integrated with versatile digital audio signal processing functions, high-performance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages.
The NTP8810A receives digital serial audio data with sampling frequency 96kHz, 48kHz, 44.1kHz and 32kHz. It delivers 2 x 15 watts in stereo mode.The NTP8810A has a mixer and Bi-Quad filters which can be used to implement the essential audio signal processing functions like, compensation of a loud speaker response and parametric equalization.
All the functions of the NTP8810A can be controlled by internal register values via I2C host interface bus.
Features：
2 CH Stereo (15W x 2 BTL @18V, 8Ω)
SDATA Generator (I2
S output)
Wide Operating Supply Voltage Range(4.5V to 20V)
Floating Point Operation
28 Programmable Bi-Quad Filters
-Speaker Compensation
-LPF, HPF, DC Cut
-Parametric Equalizer
100dB Dynamic Range
2 Band Dynamic Range Control
Protection Circuit
-OCP(Over Current Protection)
-OTP(Over Temperature Protection)
-UVP(Under Voltage Protection)
High Efficiency
DC protection
-DC cut filter
-Coefficient memory Checksum
-Modulation Index check
Applications：
LCD/LED/OLED TV or Monitor TV
Docking Station
Mini-Component Audio Solution
