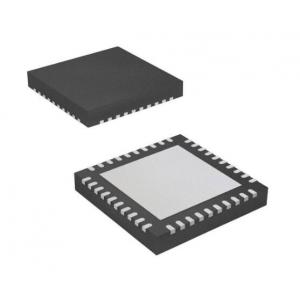

Korea Neofidelity Digital power amplifier - NTP8835C

2 CH Stereo (30W x 2 BTL @24V, 4Ω)
2.1CH (10W x 2 + 30W @24V, 4Ω)
SDATA Generator (I2S Output)
Wide Operating Supply Voltage Range(5V to 28V)
Floating Point Operation

  • Model Number: NTP8835C
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Korea Neofidelity Digital power amplifier
Mouse over image to zoom
Share:

Product Specification

General Description：


The NTP8835C is a single chip full digital audio amplifier including power stage for stereo amplifier system. The NTP8835C is integrated with versatile digital audio signal processing functions, high-performance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages.
The NTP8835C receives digital serial audio data with sampling frequencies from 8kHz through 192kHz. It delivers 2 x 30 watts in the stereo mode with a heat sink.
The NTP8835C has a mixer and Bi-Quad filters which can be used to implement essential audio signal processing functions such as compensation of a loud speaker response and parametric equalization.
All functions of the NTP8835C can be controlled by internal register values via I2C host interface bus.



Features：
2 CH Stereo (30W x 2 BTL @24V, 4Ω)
2.1CH (10W x 2 + 30W @24V, 4Ω)
SDATA Generator (I2S Output)
Wide Operating Supply Voltage Range(5V to 28V)
Floating Point Operation
25 Programmable Bi-Quad Filters
? Speaker Compensation
? LPF, HPF
? Parametric Equalizer
? Loudness Control
100dB Dynamic Range
2 Band Dynamic Range Control
5 Band Graphic Equalizer
? 10 GEQs in User mode for LR
3D Surround
Protection Circuit
? OCP(Over Current Protection)
? OTP(Over Temperature Protection)
? UVP(Under Voltage Protection)
High Efficiency
Asynchronous Sample Rate Conversion
DC cut filter



Applications：
OLED/UHD/FHD TV or Monitor TV
Docking Station
Mini-Component Audio Solution
