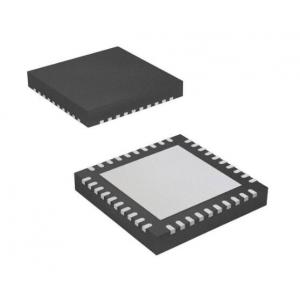

Korea Neofidelity Digital power amplifier - NTP8928

2 CH Stereo (20W x 2 BTL)
Wide Operating Supply Voltage Range(5V to 28V)
SDATA Generator (I2 S Output)
Floating Point Operation

  • Model Number: NTP8928
  • Data Sheet: Date Sheet File
Quantity:
- +

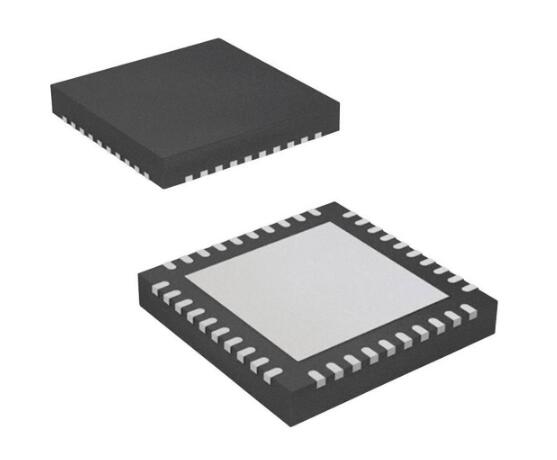

  • Korea Neofidelity Digital power amplifier
Mouse over image to zoom
Share:

Product Specification

General Description:

The NTP8928 is a single chip full digital audio amplifier including power stage for stereo amplifier system. The NTP8928 is integrated with versatile digital audio signal processing functions, high-performance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages.
The NTP8928 receives digital serial audio data with sampling frequencies of 32kHz, 44.1kHz, 48kHz, and 96kHz. It delivers 2 x 20 watts in stereo mode without heat sink.
The NTP8928 has a mixer and Bi-Quad filters which can be used to implement the essential audio signal processing functions such as loudness control, compensation of a loud speaker response and parametric equalization.

All the functions of the NTP8928 can be controlled by internal register values via I2C host interface bus.

Features:
2 CH Stereo (20W x 2 BTL)
Wide Operating Supply Voltage Range(5V to 28V)
SDATA Generator (I2 S Output)
Floating Point Operation
32 Programmable Bi-Quad Filters
-Speaker Compensation
-LPF, HPF, DC Cut
-Advanced Parametric Equalizer
IBB(Intelligent BASS Boost)
3Band Dynamic Range Control
-RS(Reinforced Sound) DRC
Loudness Control
Protection Circuit
-OCP(Over Current Protection)
-OTP(Over Temperature Protection)
-UVP(Under Voltage Protection)
Vol/Soft Mute/Power Meter/NS Feedback
Smart PWM Switch On/Off
High Efficiency
DC Protection
-DC Cut Filter
-Coefficient Memory Checksum(PEQ/DRC)
-Modulation Index Check

Applications:
OLED/UHD/FUD TV or Monitor TV
Docking Station
Mini-Component Audio Solution
