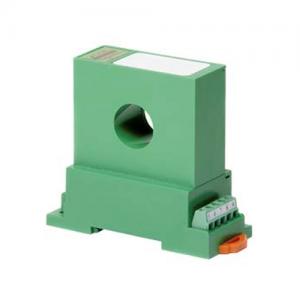

Loop-Powered AC Current Transmitter - Single Element - CR4220

? Current: AC Current
? Frequency: AC Frequency
? RMS: Average RMS
? Elements: Single Element
? Outputs: 4-20 mA DC
? Power: Loop Powered
? Mount: DIN Rail Mount, Panel Mount

Model Number: CR4220
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

The CR4220 Series, Loop-powered Current Transmitter produces a calibrated 4-20mAdc output signal that is proportional to the Average RMS input AC current. These devices provide long range monitoring of AC sinusoidal currents in an easy to install package. The output signal is generated from a user supplied PLC power supply within the output current loop.

CR4220 Loop-Powered AC Current Transmitter Features
? DIN rail or panel mount
? High Accuracy
? Easy wiring
? Interfaces with most commercially available instruments
? Connection diagram printed on case
? Relatively low cost

CR4220 Loop-Powered AC Current Transmitter Specifications
? Response Time: 250 ms
? Output Load: 0 To 300 Ω
? Frequency Range: 50 - 400 Hz
? Power Source: Loop Powered
? Insulation Voltage: 2500 VDC
? MTBF: Greater than 100 K hours
? Thermal Drift: 500 PPM/°C
? Basic Accuracy: 0.5%
? Calibration: Average Sensing, RMS Calibrated

CR4220 Loop-Powered AC Current Transmitter Applications
? Multi-point current sensing and control panels
? Monitor lighting elements
? Monitor heating elements
? Remote current sensing
? Monitor motor faults

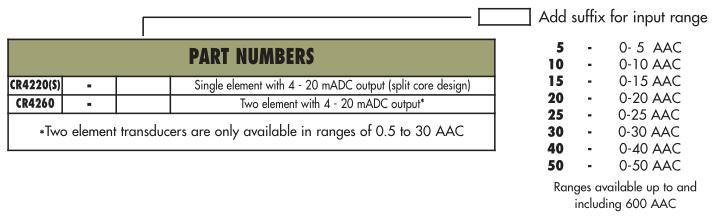

CR4220 Loop-Powered AC Current Transmitter PART NUMBERS
