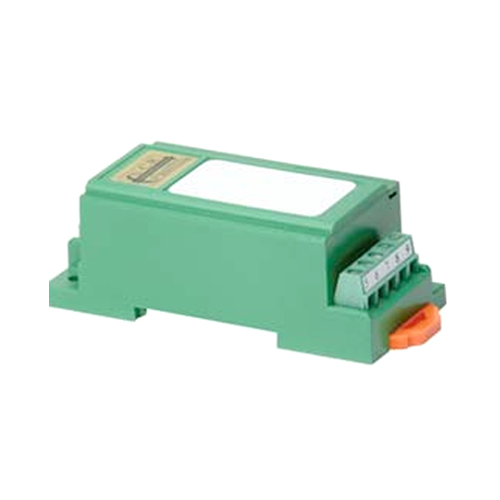

Loop-Powered AC Voltage Transmitter - Single Element - CR4620

Product Specification

CR4620 Loop-Powered AC Voltage Transmitters are designed to provide a 4 - 20 mA DC output that is proportional to the average RMS AC voltage input. These devices are best suited for general applications, such as fixed frequency voltage supplies.

CR4620 AC Voltage Transmitter Features
? DIN Rail or Panel Mount
? One or two element
? Connection diagram printed on case
? Outputs isolated from inputs

CR4620 AC Voltage Transmitter Specifications
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Operating Temperature: 0°C to +50°C
? Output Load: 0 - 300 ohm
? Frequency Range: 50 Hz - 400 Hz
? Loop Voltage: 24 VDC
? Power Source: Loop Powered
? Insulation Voltage: 2500 VDC
? Thermal Drift: 500 PPM/°C
? Calibration: Average Sensing, RMS Calibrated
? Basic Accuracy: 0.5%

CR4620 AC Voltage Transmitter Applications
? Monitor for over/under voltage
? Power monitoring
? Multi-point instrumentation needs
? Sense phase loss

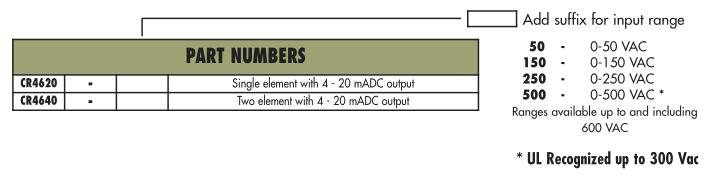

CR4620 AC Voltage Transmitter PART NUMBERS
