Nitric Oxide (NO) Gas Sensor - 5NF

? Incorporates scavenging electrode for removal of by-products
? Electrical connection via PCB pins or solder tags

  • Model Number: 5NF
  • Data Sheet: Date Sheet File
Quantity:
- +

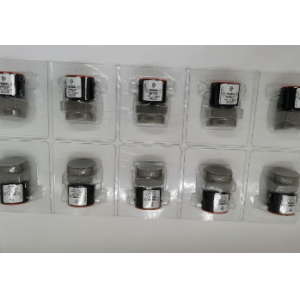

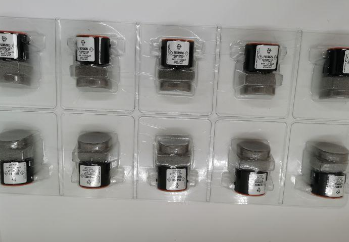

  • Nitric Oxide (NO) Gas Sensor

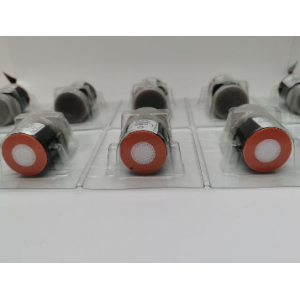

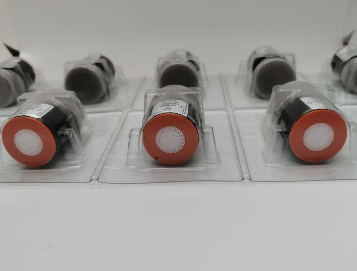

  • Nitric Oxide (NO) Gas Sensor

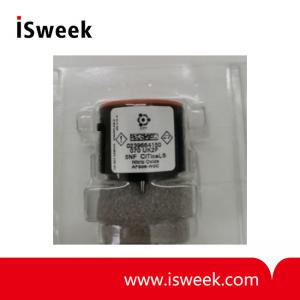

  • Nitric Oxide (NO) Gas Sensor
Mouse over image to zoom
Share:

Product Specification

5NF Nitric Oxide Gas Sensor Key Features and Benefits

? Incorporates scavenging electrode for removal of by-products

? Electrical connection via PCB pins or solder tags



5NF Nitric Oxide Gas Sensor Technical Specifications:

MEASUREMENT

Operating Principle

4-electrode electrochemical

Measurement Range

0-1000 ppm NO

Maximum Overload

5000 ppm NO

Filter

To remove effect of SO2

Filter Life

25,000 ppm hours

(1000 ppm SO2 at 200 ml/min)

Sensitivity*

0.10 ± 0.02 μA/ppm

Response Time (T90)*

< 30 seconds

Baseline Offset (clean air)*

0 to 12 ppm equivalent

Maximum Zero Shift

(+20°C to +40°C)

30 ppm equiv.

Resolution

When using recommended electronics

1 ppm

Repeatability

2% of signal

Linearity

Linear

ELECTRICAL

Recommended Load Resistor

10 ?

Bias Voltage

+300 mV

MECHANICAL

Weight

13 g nominal

Orientation

Any

ENVIRONMENTAL

Operating Temperature Range

-20°C to +40°C See note 1

Recommended Storage Temp

0°C to 20°C

 Operating Pressure Range

Atmospheric ± 10%

Pressure Coefficient

0.01% signal / mbar

Operating Humidity Range

15 - 90% RH non-condensing

LIFETIME

Long Term Sensitivity Drift

< 2% signal loss/month

Expected Operating Life

Three years in air

Storage Life

6 months in CTL container

Note 1: While not being used to measure NO, the 5NF can withstand temperatures of up to 50°C.




* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

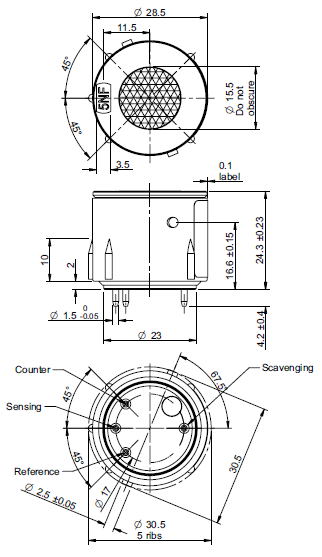

5NF Nitric Oxide Gas Sensor Product Dimensions(without bayonet fitting)



All dimensions in mm

All tolerances ±0.15 mm unless otherwise stated
