Personal Tracker & Mobile Phone - MAMBO2-B6
NEW High Sensivity A-GPS u-blox 6 Satellite receiver
Communication via Quad Band GSM
Voice, SMS, Data, GPRS, TCP/IP
Full colour OLED display
Fully approved ( FCC, CE )
Remote administration & firmware update
Online tracking / History / Geofencing
Fully customizable behaviour
Autonomous operation
- Model Number: MAMBO2-B6
- Quantity:
- - +
Product Specification
MAMBO2-B6 Personal tracker & mobile phone
? NEW High Sensivity A-GPS u-blox 6 Satellite receiver
? Communication via Quad Band GSM
? Voice, SMS, Data, GPRS, TCP/IP
? Full colour OLED display
? Fully approved ( FCC, CE )
? Remote administration & firmware update
? Online tracking / History / Geofencing
? Fully customizable behaviour
? Autonomous operation
? Personal security and recovery
? "Man-Down" - Motion detection
? Customizable GUI
MAMBO2-B6 can be used as a cell phone with the standard features, voice calls, SMS all through a simple menu-guided operation. This small robust device can be carried along in a pocket or fixed in a vehicle. It is a true mobile all-rounder both for commercial and private users. MAMBO2-B6 also supports a series of functions for GPS navigation and tracking via SMS, CSD and GPRS/TCP. The all-rounders true strength lies in the multitude of its configuration options: Rolling GPS display, geo-fencing capability with alarm and an ultra-precise movement detector are just some of the MAMBO2-B6s core functions.
MAMBO2-B6 integrates three communication options, including GSM, TCP and USB. This first-of-its-kind solution with a sophisticated software offers system integrators and developers the possibility to develop their own cost efficient and flexible solution.
Available options for MAMBO2-B6

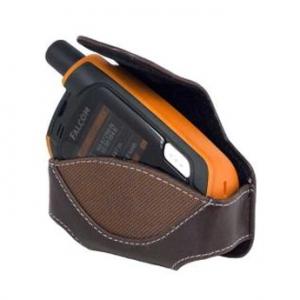

? Leather bag

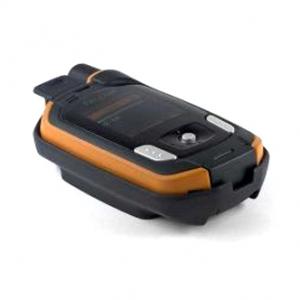

? Car mounting kit

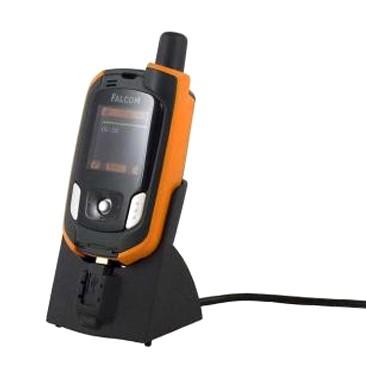

? Docking station
Facts
GSM/GPRS core |
Quad-band module 850/900/1800/1900 MHz GPRS class 10, class B TCP/IP (accessible via PFAL commands) |
GPS core |
50 channel GPS receiver AGPS Offline / Autonomous Protocols: NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84 Accuracy: - Position < 2.5 m - SBAS < 2 m Acquisition: - TTFF hot start: < 1 s average - TTFF warm satart: < 29 s average - TTFF cold start: < 29 s average Sensitivity: - Acquisition: -160 dBm - Tracking: -160 dBm (12 dBHz) - Cold start: -144 dBm Limits: - Velocity: 500 m/s (972 knots) - Altitude: 50.000 m |
Processor core |
ARM7/TDMI Memory: 8 MB Flash / 4 MB RAM |
Electrical characteristics |
Power: USB Rechargeable Li-Polymer battery 1650mA |
Physical characteristics |
Dimensions (H x W x T): 86 (103) x 54 x 26 mm Weight: approx. 108 g |
Temperature range | -20°C to +60°C |
Motion sensor | 3-axis motion sensor |
Interfaces |
Mini USB port OLED display, 128 x 128 Px, Full colour SIM card reader for 1,8/3 V SIM cards Internal speaker Internal microphone 2 buttons 5-way joystick Reset button |
