Screen Brightness Meter - SM208

? Measuring range 0.01-39990 cd/m2
? Measuring distance ≤1m
? Precision: ≤±0.5% of the measured value +1 figure
? Object size: ≥Ф20, increasing with the increase of measuring distance
? Precision: ≤±0.5% of the measured value +1 figure
? Operating Temperature: 0-40°C
? Operating Relative humidity: ≤85%

Model Number: SM208

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

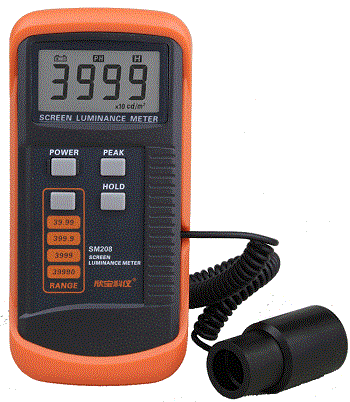

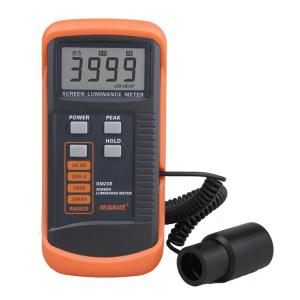

SM208 Screen Brightness Meter

Features:
Adopting a detector powered by a silicone photocell with high stability, photostability, and shock resistance, strict vision correction and accurate photometric measurement can be realized.
With a wide measuring range, it can measure between 0.01-39990 cd/m² without a dimmer.
It is a digital display with good indication reproducibility, data latching and peak value latching functions;
With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery;
Mini light probe, measuring angle <10O;
Compact, portable, easy to use.

Technical specifications:
Measuring range 0.01-39990 cd/m²
Measuring distance ≤1m
Object size: ≥Ф20, increasing with the increase of measuring distance
Precision: ≤±0.5% of the measured value +1 figure
Indication error: ≤±0.5% of the measured value +1 figure (relative to NIM standard)
Spectrum response characteristics: In accordance with the standard of national grade I illuminometer
Linearity error: ≤+0.2% of the measured value +1 figure
Temperature characteristics: ≤+0.1% of the measured value +1 figure
Operating environment:
Temperature: 0-40°C
Relative humidity: ≤85%
Dimensions and weight: 149 x 71 x 41 mm³
Power supply: 9V layer-built battery (model 6F22)
