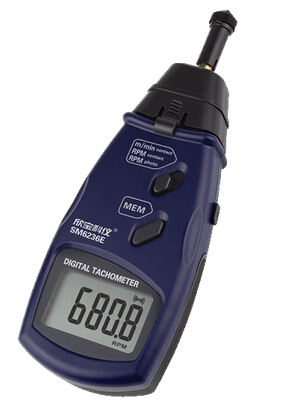

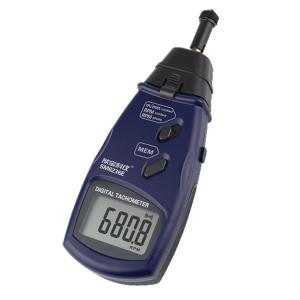

Photo/Contact Tachometer - SM6236E
? 5 digits 18mm (0.6") Yellow backlight LCD
? Accuracy: ±(0.05%+1 digit)
? Sampling Time: 0.5 sec(over 120RPM)
? Range Select: Auto-Ranging
? Memory: Max. value, Min. value, Last value. Can store 96s data.
? Time Base: 6MHz Quartz crystal
? Detecting Distance: 50~500mm
- Model Number: SM6236E
- Quantity:
- - +
Product Specification
SM6236E Photo/Contact Tachometer
Surface Speed Meter
5 digits 18mm (0.6") Yellow backlight LCD
Accuracy: ±(0.05%+1 digit)
Sampling Time: 0.5 sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value. Can store 96s data.
Time Base: 6MHz Quartz crystal
Detecting Distance: 50~500mm
Measuring Range:
Photo Tach: 2.5~99,999 RPM
Contact Tach: 0.5~19,999 RPM
Surface Speed: 0.05~1,999.9 m/min
Resolution:
Photo Tach: 0.1 RPM(2.5~999.9 RPM)
1 RPM(over 1,000 RPM)
Contact Tach: 0.1 RPM(0.5~999.9 RPM)
1 RPM(over 1,000 RPM)
Surface Speed: 0.01m/min(0.05~99.99m/min)
0.1m/min(over 100m/min)
Battery: 4x1.5V AA battery
