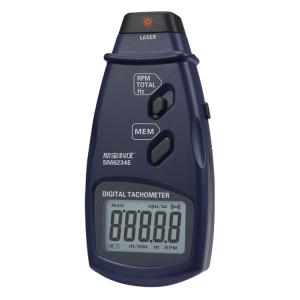

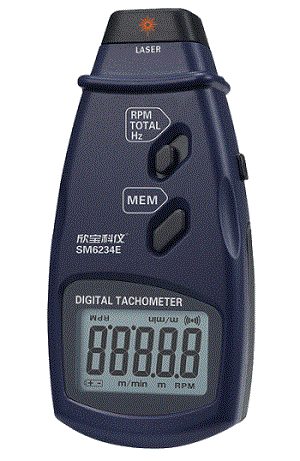

Photo Tachometer - SM6234E
? Display: 5 digital, 18mm LCD
? Range: 2.5~99999 RPM, 0.05~1666 Hz, 1~99999 Count
? Accuracy: ±(0.05%+1digital) of reading
? Sampling Time: 0.8second (over 60 RPM)
? Memory: Max. value, Min. value, Last value. Can store 96s data.
? Range Select: Auto-range
? Time Base: 6MHz Quartz crystal
? Detecting Distance: 50mm - 500mm
- Model Number: SM6234E
- Quantity:
- - +
Product Specification
SM6234E Photo Tachometer
Display: 5 digital, 18mm LCD
Range: 2.5~99999 RPM
0.05~1666 Hz
1~99999 Count
Resolution: 0.1 RPM From: (2.5 ~ 999.9 RPM)
1 RPM From: (above 1000 RPM)
0.01Hz From: (0.05 ~ 99.99 Hz)
0.1Hz From: (above 100 Hz)
Accuracy: ±(0.05%+1digital) of reading
Sampling Time: 0.8second (over 60 RPM)
Memory: Max. value, Min. value, Last value. Can store 96s data.
Range Select: Auto-range
Time Base: 6MHz Quartz crystal
Detecting Distance: 50mm - 500mm
Dimension: 155*70*35mm
Power: 3 x 1.5V AAA battery
