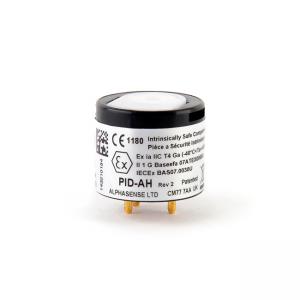

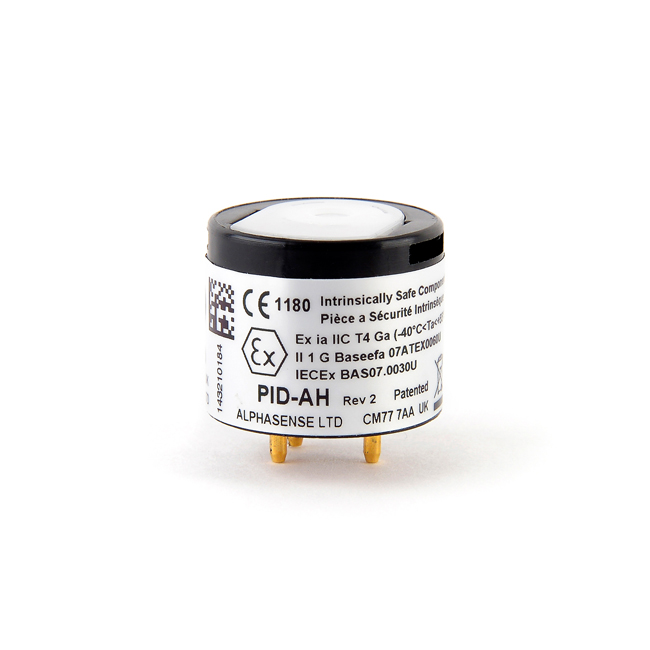

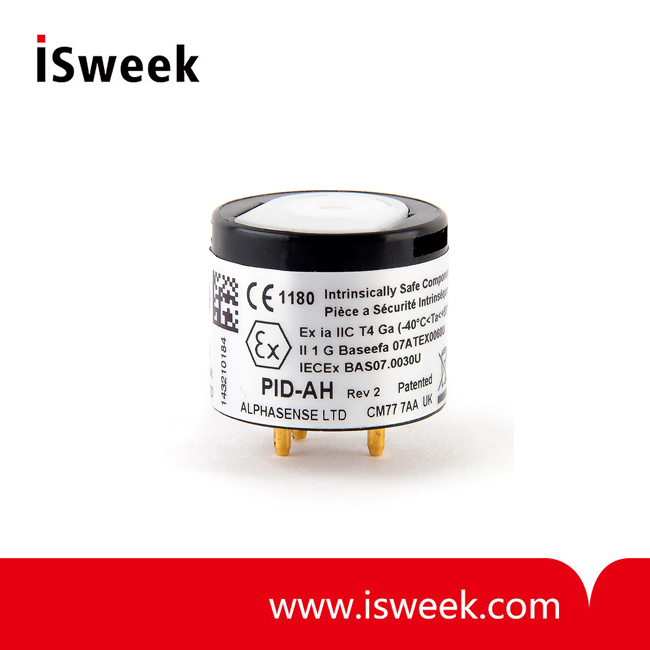

Photoionization Gas Sensor (PID Gas Sensor) - PID-AH

? Target gases: < 10.6 eV VOCs with ionisation potentials
? Minimum detection level: 1 ppb isobutylene
? Linear range: 50 ppm isobutylene 3% deviation
? Overrange: 50 ppm isobutylene
? Sensitivity: > 20 linear range mV / ppm Isobutylene
? Full stabilisation time: 20 minutes to 20 ppb
? Warm up time: 5 seconds time to full operation
? Offset voltage: 46 to 60 mV variable between detectors
? Response time (t90): < 3 seconds diffusion mode

Model Number: PID-AH
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PID-AH Photoionization Gas Sensor Description
With a PID, the sample gas is exposed to deep ultraviolet light.

The emitted light ionises targeted gases and they are then detected by the PID electronics and reported as a concentration (ppb or ppm).

PIDs can measure Volatile Organic Compounds (VOCs) to very low concentrations.
Considered the gold standard for VOC measurement, Alphasense PIDs are compact and low power, with recently improved electronics and longer lamp life. An extended family of lamps now include better BTEX and chlorinated VOC detection. These sensors are pin-replaceable with the 4P90 pellistor.

The Alphasense PID sensor is offered in two models, A12 and AH2. They are virtually insensitive to humidity changes, providing unparalleled performance in a variety of applications.

PID-A12 has a linear dynamic range of 50 ppb to 6,000 ppm (Isobutylene).
PID-AH2 has a linear dynamic range of 1 ppb to 50 ppm (Isobutylene).

The sensors include a detector with lamp driver, amplifier circuitry, and user replaceable electrode stack, 10.6 eV lamp and particulate filter.

PID-AH Photoionization Gas Sensor Features:
? Measurement range of 0~50ppm
? High resolution of 1ppb
? Linear output
? No need of circuit design and easy to use
? With internal heater, the sensor can work normally under high humidity without being affected.

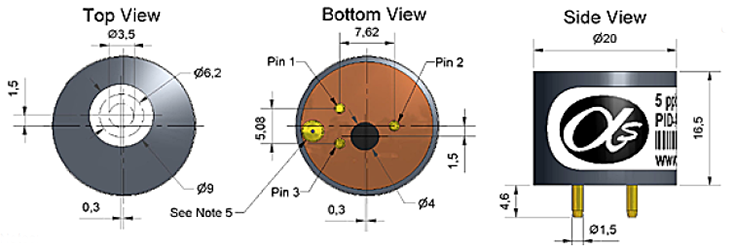

PID-AH Photoionization Gas Sensor Schematic Diagram

PID-AH Photoionization Gas Sensor PERFORMANCE
Target gases	VOCs with ionisation potentials	< 10.6 eV
Minimum detection level	ppb isobutylene	1
Linear range	ppm isobutylene 3% deviation	50
Overrange	ppm isobutylene	50
Sensitivity	linear range mV / ppm Isobutylene	> 20
Full stabilisation time	minutes to 20 ppb	20
Warm up time	seconds time to full operation	5
Offset voltage	mV variable between detectors	46 to 60
Response time (t90)	seconds diffusion mode	< 3

PID-AH Photoionization Gas Sensor (PID Sensor) ELECTRICAL
Power consumption	85 mW (max) at 3.2 V, 300 mW transient for 200 msec on switch-on
Supply voltage	3.2 to 3.6 VDC Ideally regulated ±0.01V (onboard regulator disabled) 3.2 to 10 VDC (onboard regulator enabled) (maximum 10V for IS approval, maximum 18 V for non-IS)
Output signal	Offset voltage (minimum 46 mV) to Vmax (Vmax = Vsupply -0.1 V when regulator is enabled)

PID-AH Photoionization Gas Sensor ENVIRONMENTAL
Temperature range	-40℃ to +55℃ (Intrinsically Safe); -40℃ to +65℃ (non-IS)
Temperature dependence	0℃ to 40℃ 90% to 100% of signal at 20℃
	-20℃ 140% of signal at 20℃
Relative humidity range	Non-condensing 0 to 95%
Humidity sensitivity	During operations: 0% to 75% rh transient near zero

PID-AH Photoionization Gas Sensor (PID Sensor) KEY SPECIFICATIONS
Operating life	5 years (excluding replaceable lamp and electrode stack)
IS Approval	IECEx Ex ia IIC T4; ATEX Ex ia II 1G -40℃ < Ta < +55℃ (< 10VDC supply)
Onboard filter	To remove liquids and particulates
Lamp	User replaceable
Electrode stack	User replaceable
Error state signal	Lamp out: 35 mV
Weight	< 8g
Position sensitivity	None
Warranty period	Electronics and housing: 24 months Lamp and electrode stack are user replaceable. 10.6eV lamp: 5,000 lit hours
