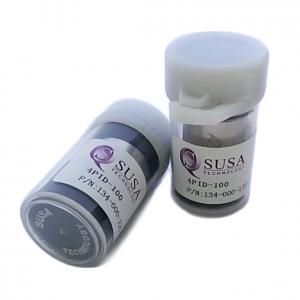

Photoionization Sensor (PID sensor) TVOC Detection - 4PID-100

? Working principle: PID
? Measurement range: 0~100ppm
? Resolution: 25ppb
? Sensitivity: > 15mV/ppm
? Response Time(T90): ≤5second
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)

  • Model Number: 4PID-100
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Photoionization Sensor (PID sensor) TVOC Detection
Mouse over image to zoom
Share:

Product Specification

Photoionization Sensor (PID sensor) TVOC Detection

4PID-100 Photoionization Sensor (PID sensor) Basic Characteristics
? Working principle: PID
? Measurement range: 0~100ppm
? Resolution: 25ppb
? Accuracy: <±2% (Calibration Point)
? Operating Temperature Range: -40~50°C
? Operating Humidity Range: 0~99% ( No condensing)
? Operating Pressure Range: 800~1200mbar

4PID-100 Photoionization Sensor (PID sensor) Electrical Characteristics
? Working Voltage: 3.2~5V
? Zero Voltage: 100±50mV
? Output: 1.8~3V
? Safe Approval: Ex is Pending

4PID-100 Photoionization Sensor (PID sensor) Lifetime
? Recommending Storage Temperature: 0~20°C
? Operating Life: minimum 5 years ( not include UV lamp and detector)
? UV lamp Life: minimum 10000 hours
? Warranty: 12 months

4PID Photoionization Sensor Product & Performance Classification(10.6eV)-4R:

Range
 		20ppm
 		100ppm
 		300ppm
 		1000ppm
 		2000ppm
 		10000ppm
Part Number
 		134-000-020
 		134-000-120
 		134-000-320
 		134-000-130
 		134-000-230
 		134-000-140
Resolution
 		5ppb
 		25ppb
 		75ppb
 		250ppb
 		500ppb
 		2ppm
Sensitivity
 		>75mV/ppm
 		> 15mV/ppm
 		> 5mV/ppm
 		> 1.5mV/ppm
 		> 0.3mV/ppm > 0.15mV/ppm
Response Time(T90)
 		≤5second
 		≤5second
 		≤5second
 		≤3second
 		≤3second
 		≤3second
