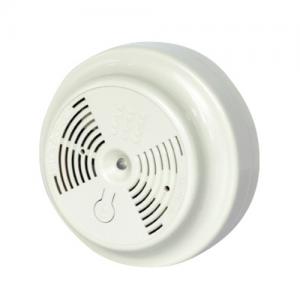

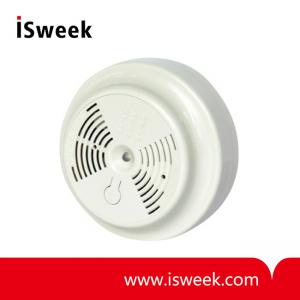

Point Combustible Gas Detector - BJ-86-3A
? Detection of gas: Liquefied natural gas
? Detection method: FIGARO semiconductor gas sensor
? Power source?: DC24V ± 15%?
? Power consumption: 2.5W or less
? Alarm: red light, the alarm sound over 70dB
? Temperature: -10 ~ 55°C
- Model Number: BJ-86-3A
- Data Sheet:
- Quantity:
- - +
Product Specification
Point Combustible Gas Detector
BJ-86-3A Combustible Gas Detector Detection of gas:
Liquefied natural gas
Other
BJ-86-3A Combustible Gas Detector Technical Parameters
Detection method
FIGARO semiconductor gas sensor
Alarm concentration
20% of the lower flammable limit or less (natural gas, liquefied petroleum gas)
Mating systems
JK-S02-1 / JK-S02-2
JK-P06-1 / JK-S08
Other
Power source
DC24V ± 15%
Power consumption
2.5W or less
Alarm
red light, the alarm sound over 70dB
Fault alarm
(Gas sensor failure alarm fault) Yellow light
Alarm output
Relay contact output (AC220V, DC 24V, MAX / A, ordering optional)
Output delay
20 seconds (± 5 seconds) alarm output (according to user requirements change)
Connection controller
JK-S02-1; JK-S02-2; JK-P06-1; JK-S08; other
Temperature
-10 ~ 55°C
Size & Weight
φ104 x H45mm, about 200g
Subsidiary products
Screw two, up tube 2
Executive Standard
GB15322
