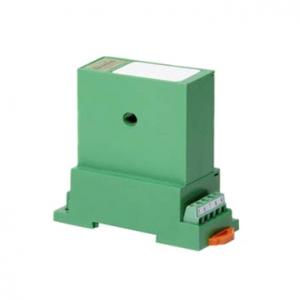

Power Factor Transducer - CR6311
Current: AC Current
Voltage Type: AC Voltage
Frequency: AC Frequency
RMS: N/A
Elements: Single Element
Outputs: 0-10 VDC
Power: 24 Vdc Power
Power Factor: Power Factor
Mount: DIN Rail Mount, Panel Mount
- Model Number: CR6311
- Data Sheet:
- Quantity:
- - +
Product Specification
CR6311 Power Factor Transducers are designed to sense the Phase Angle difference between AC Current and Voltage signals.
CR6311 Power Factor Transducer Features
? DIN Rail or Panel Mount
? Up to 600Vac Input Voltage
? Up to 25 AAC Input Current
? Extend the ranges wih External CT's and PT's
? Measure -90 to +90 Phase Difference
? 0 - 10 VDC Output
? Connection diagram printed on case
CR6311 Power Factor Transducer Specifications
? Insulation Voltage: 2500 VDC
? Output Load: 2K Ω or Greater
? Frequency Range: 50Hz-400Hz
? Basic Accuracy: 0.5%
? Power Source: 12 to 24 VDC
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Thermal Drift: 500 PPM/°C
? Operating Temperature: 0°C to +60°C
CR6311 Power Factor Transducer Applications
? Motor Loading
? Correct Power Factor
? Measure Timing
CR6311 Power Factor Transducer PART NUMBERS
