Pre-calibrated Module for Combustible Gas - FSM-19T-02
* USART digital outputs proportional to gas concentration
* Maintenance free
* Small volume
* RoHS Compliant
- Model Number: FSM-19T-02
- Data Sheet:
- Quantity:
- - +
Product Specification

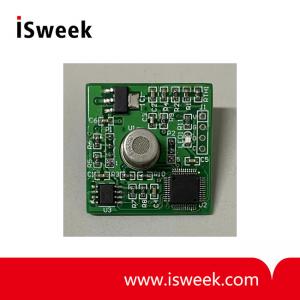

The pre-calibrated module for combustible gas FSM-19T-02 is a module in which Figaro's semiconductor sensor TGS2619 is installed and features good durability as well as high stability. It is able to provide USART output (the module is equipped with a memory in which the factory pre-calibrated data are stored ) proportional to the concentration detected. Meanwhile, the module will detect whether there is a sensor disconnection or short fault. The module can be operated over a wide temperature range.
In addition, the module has neglectable cross sensitivities to organic gases, and a better tolerance against silicone compounds, for which it is more suitable to adverse environment.
Features:
* USART digital outputs proportional to gas concentration
* Maintenance free
* Small volume
* RoHS Compliant
Applications:
* Leakage detection for combustible gases
* Combustible gases leaking detector
* Industrial detector

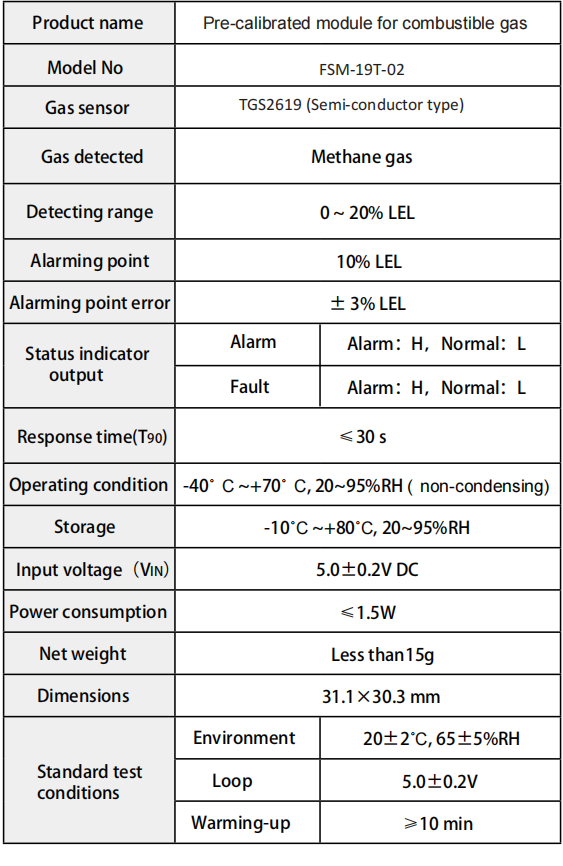

Specifications:

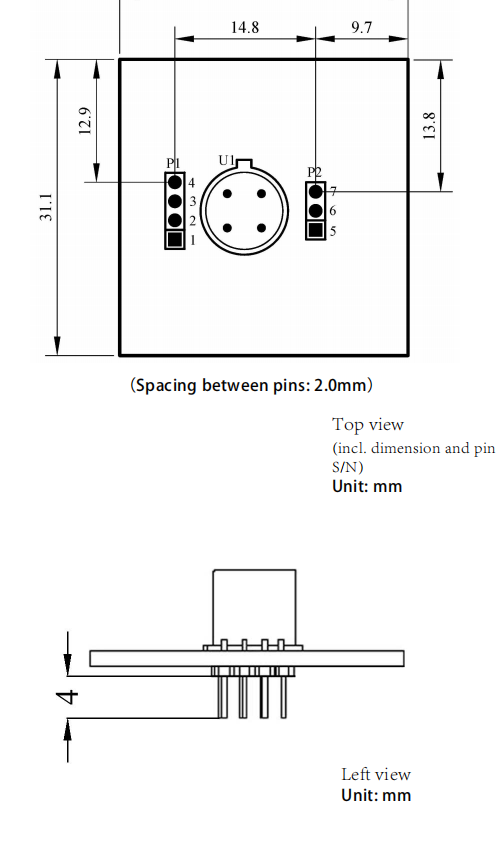

Dimensions:
