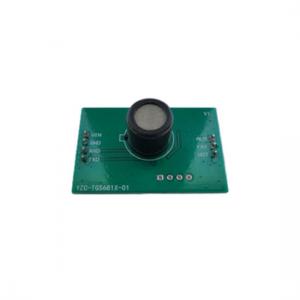

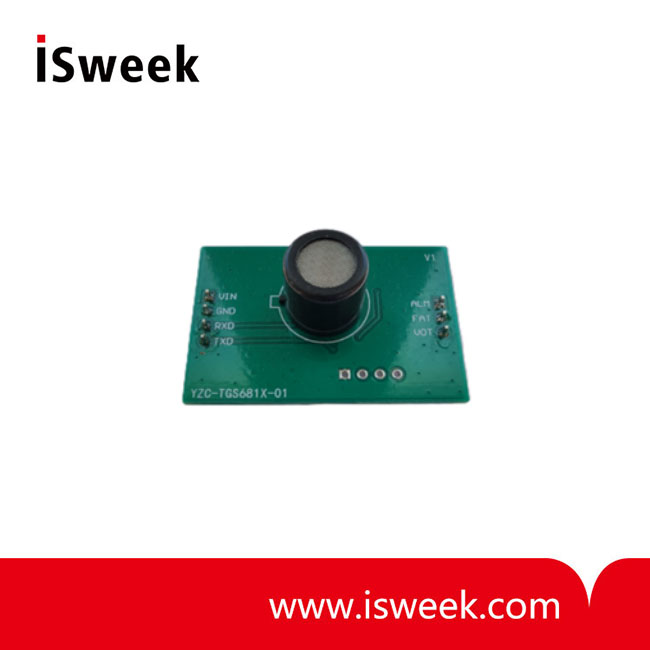

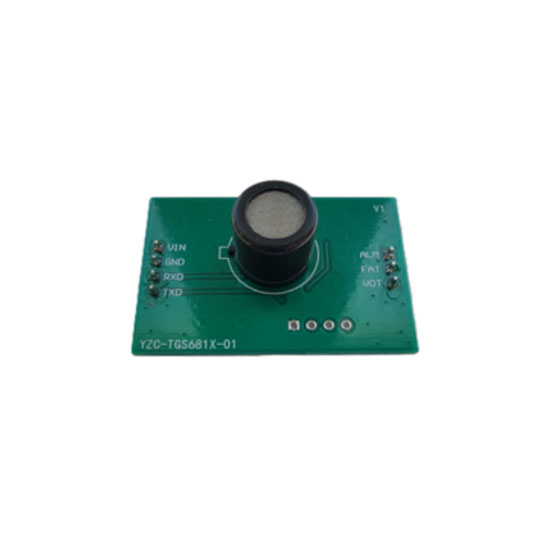

Pre-calibrated Module For Detecting Flammable Gases - AG-3-CHX-M6812(D)
Residential LNG and LPG alarms
Detectors for LNG and LPG
- Model Number: AG-3-CHX-M6812(D)
- Data Sheet:
- Quantity:
- - +
Product Specification
Pre-calibrated Module For Detecting Flammable Gases AG-3-CHX-M6812(D) ProductDescription：
The AG-3-CHX-M6812(D) is an embedded type module equipped with the Figaro’s Catalytic Sensor TGS6812, capable of detecting combustible gases such as methane (CH4), LP gas, and Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability,and anti-poisoning. It utilizes digital communication through a UART bus output for gas concentration readings, which allows users to easily and quickly integrate the module into various systems. This makes it suitable for both residential and industrial gas detection applications.
Pre-calibrated Module For Detecting Flammable Gases AG-3-CHX-M6812(D) Technical Specification：
|
Item |
Specification |
|
Model Number |
AG-3-CHX-M6812(D) |
|
Target Gases |
CH4,C3H8,H2 etc. |
|
Sensing Principle |
Catalytic |
|
Detection Range |
0-100%LEL |
|
Resolution |
1% LEL |
|
Measurement Error |
< ±5% FS |
|
Operating Voltage |
5-12V DC |
|
Operating Current |
≤ 200mA@5V |
|
OutputSignal |
UART (+3.3V TTL) |
|
Temperature Range |
-40 - 70°C |
|
Humidity Range |
0% -90%RH |
|
Pressure Range |
900.0 to 1120 mbar |
|
Storage Temperature |
10 - 40°C |
|
Size |
L*W*H=49mm*34mm*26mm |
|
Expected Life |
See the corresponding sensor data sheet for details. |
Pre-calibrated Module For Detecting Flammable Gases AG-3-CHX-M6812(D) Application：
Residential LNG and LPG alarms
Detectors for LNG and LPG
