Product Specification

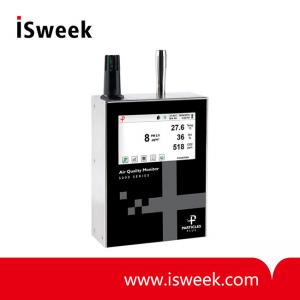

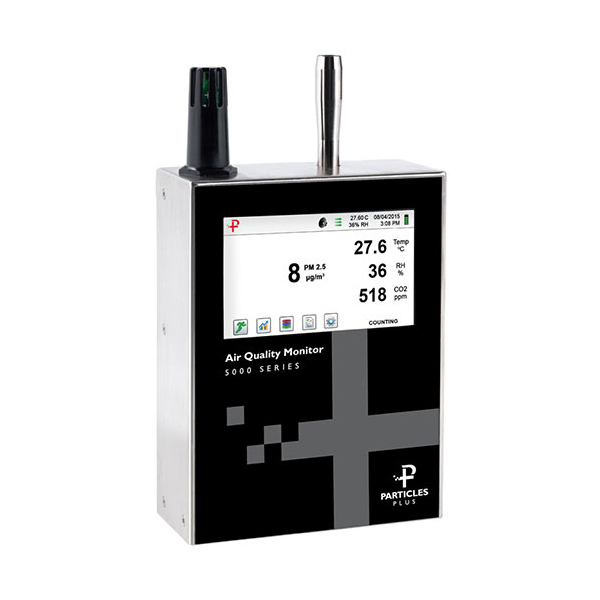

5301-AQM and 5302-AQM Remote Air Quality and Environmental Monitor
(CO2, Temp, RH and TVOC)
The 5301-AQM and 5302-AQM Remote Air Quality Monitor measures and displays particle mass concentrations for PM1, PM2.5, PM5 and PM10 including temperature, relative humidity, CO2 (and TVOC in the 5302-AQM). This wall- mounted instrument is the most versatile remote air quality monitor available for fixed installations. The advanced power management and the industry’s first sleep mode, allows for long intervals between samples over extended and unattended operations. The AQM Series can easily integrate into a building automation and facility monitoring system via Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.

The 5301-AQM and 5302-AQM reports and displays 6 user-selectable particle size channels, as well as Carbon Dioxide (CO2), temperature, and relative humidity. The instrument monitors PM1, PM 2.5, PM5, PM 10 (and any other PM size value the user specifies) with an easy-to-use Channel Management control panel. The instrument also monitors flow, sensor status, date of last calibration, serial number, laser on-time, and date of manufacture for easy maintenance and warranty management. The remote monitor operates using a long-life internal 0.1 CFM pump.

5301-AQM/5302-AQM Remote Air Quality and Environmental Monitor Features and Benefits
? Measures 0.3 μm to 25 μm
? 0.1 CFM (2.83 LPM) flow rate
? Large easy-to-use icon driven color touch screen display
? Approximates mass concentration in μg/m3 and indicates simultaneous PM values
? User-selectable, adjustable particle channel sizes
? 5301-AQM measures CO2, temperature and relative humidity with user alarm set points. The 5302-AQM includes TVOC
? Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
? Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232
? Static or dynamic IP address (DHCP) connects to a local network or the internet
? Seamless integration into a facility monitoring system with MODBUS RTU, ASCII or TCP
? Included software permits remote operations, data management, diagnostics & more
? Displays and externally prints information with optional printer
? Internal audible alarm with user selectable thresholds for all environmental parameters
? Advanced power management
? Easy configuration and transferable from instrument to instrument
? User friendly field calibration with single or dual point offsets for all sensors
? Lightweight stainless steel enclosure
? Long life laser diode technology
? 2 year limited warranty, extended warranties available

5301-AQM/5302-AQM Remote Air Quality and Environmental Monitor Specifications
