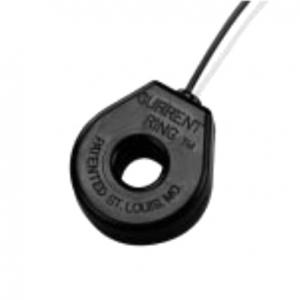

Remote Electrical Current Indicator - Model 19

? Low cost
? Non-contact, isolated measurement
? Case Material: Black Thermoplastic
? Construction: Epoxy Encapsulated
? Maximum Continuous Primary Current 4 X Ir.
? Insulation Voltage: 3500 Vac/1min.

  • Model Number: Model 19
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Remote Electrical Current Indicator
Mouse over image to zoom
Share:

Product Specification

CR Magnetics offers a versatile line of rugged wire lead current transformers. Installed around a current-carrying wire, the sensor provides a current output relative to the AC input current (within specification limits). With the output connected across a resistive load (burden), the voltage developed is proportional to the input current.

Model 19 Remote Electrical Current Indicator Features
? Low cost
? Non-contact, isolated measurement

Model 19 Remote Electrical Current Indicator Specifications
? Case Material: Black Thermoplastic
? Construction: Epoxy Encapsulated
? Maximum Continuous Primary Current 4 X Ir.
? Insulation Voltage: 3500 Vac/1min.

Model 19 Remote Electrical Current Indicator Applications
? Remote Monitoring of Electrical Loads.
? Input to electrical control system.
? Detect open heater elements
? Indicate Phase Loss
? Monitor Motor Operation.

ORDER INFORMATION

Part Number
Description
Model 19
Current Transformer with .29 dia. opening, 230 turns
