Single-channel Fiber Optic Signal Conditioner - FTI-10

Number of channels: 1
Sampling rate: 10 Hz
Averaging: 1 to 500 samples
Precision: 0.025% of full scale
Resolution: 0.01% of full scale
Analog output: ±10 V with screw connectors
Operating temperature?: -20°C to 40°C (-4°F to 104°F)

  • Model Number: FTI-10
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Single-channel Fiber Optic Signal Conditioner
  • Single-channel Fiber Optic Signal Conditioner
Mouse over image to zoom
Share:

Product Specification

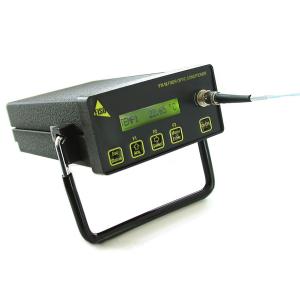

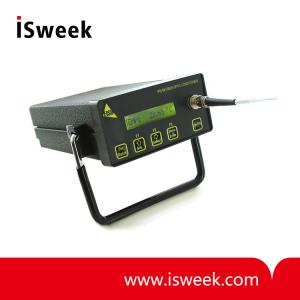

FTI-10 Single-channel Fiber Optic Signal Conditioner Description
The FTI-10 is a single-channel, battery-powered fiber optic signal conditioner especially designed to work with all of FISO’s fiber optic sensors. It is a general purpose instrument ideally suited to perform single-point measurements in a myriad of industrial and R&D applications.

FTI-10 Single-channel Fiber Optic Signal Conditioner Key Features
? Compatible with most of FISO’s fiber optic sensors
? Voltage output and RS-232 communication port
? Backlighted LCD screen
? Small footprint
? Rugged and easy to use
? Battery powered
? 1/8 DIN enclosure

FTI-10 Single-channel Fiber Optic Signal Conditioner Applications
? Microwave food processing
? Thermotherapy
? NMR applications
? Microwave and RF
? High temperature pressure measurements
? Multi-purpose laboratory applications
? Advanced composite materials
? Hazardous environments
? Aerospace applications


FTI-10 Single-channel Fiber Optic Signal Conditioner Specifications:

Number of channels
1

Sampling rate

10 Hz

Averaging

1 to 500 samples

Precision

0.025% of full scale

Resolution

0.01% of full scale

Dynamic range

15 000 : 1

Display
1 line 16 characters liquid crystal display with back-light
Data logging
50 000 data points

Analog output

±10 V with screw connectors

Communication

RS-232

Upgradeability
Flash ROM firmware
Lamp life
40 000 hours of continuous use
Weight
0.9 kg (2 lb)
Dimensions (W x D x H)
90 x 165 x 48 mm (1/8 DIN) (3.5 x 6.5 x 1.9 in)
Autonomy
8 hours with fully-charged battery (0.5 Watt power consumption)
Power requirements
12 Volts DC (wallmount adapter included)
Operating temperature
-20°C to 40°C (-4°F to 104°F)
