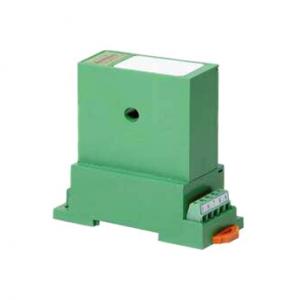

Single Phase AC Active Power Transducer - CR6210

Product Specification

CR6210 Power Transducers and Transmitters are designed to provide a controlled output that is proportional to the average power. These devices are specifically targeted to provide an efficient solution to most power sensing needs. Units are designed for operation in systems with sinusoidal voltage and current waveforms.

CR6210 AC Active Power Transducer Features
? DIN Rail or Panel Mount
? Ranges available for any power sensing need
? Active and Reactive power sensing
? 0 - 5 VDC Outputs
? Connection diagram printed on case

CR6210 AC Active Power Transducer Specifications
? Insulation Voltage: 2500 VDC
? Output Load: 2K Ω or Greater
? Frequency Range: 50Hz-400Hz
? Basic Accuracy: 0.5%
? Power Source: 12 to 24 VDC
? Response Time: 250 ms
? MTBF: Greater than 100 K hours
? Thermal Drift: 500 PPM/°C
? Operating Temperature: 0°C to +60°C

CR6210 AC Active Power Transducer Applications
? Energy Management
? Motor Efficiency
? Multi-point power sensing
? Remote power sensing over long distances

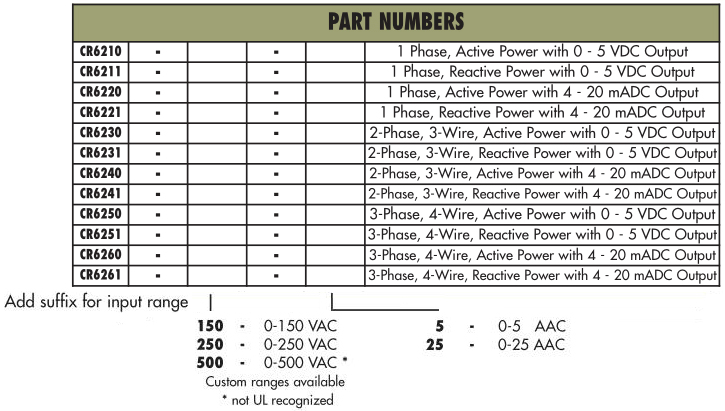

CR6210 AC Active Power Transducer PART NUMBERS
