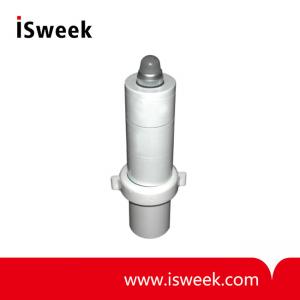

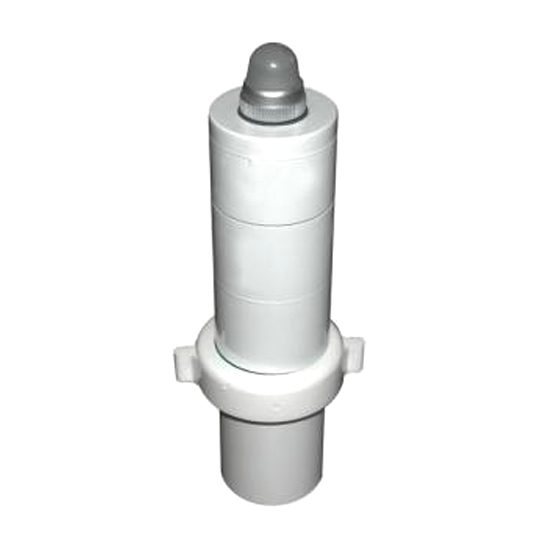

Solar Radiation Pyranometer - SOL-PYR

? Range: Wavelengths of from 400-1200 nm?
? Accuracy: Maximum ± 5% Typical ± 3%?
? Response Time: 10 microseconds?
? Input Voltage: 8 to 16 VDC?
? Temperature Dependence: 0.06% per °C maximum?
? Operating Temperature: -65°C to +80°C
? Operating Humidity: 0 to 100%

Model Number: SOL-PYR
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

SOL-PYR?Solar Radiation Pyranometer?Description
The Pyranometer is designed for measurements in solar, agricultural, meteorological and hydrological studies. The sensor features a PIN silicon photo diode mounted in a fully cosine- corrected miniature head.

Output of the sensor is a voltage equal to 0.5 ?millivolts per watt per square meter for sunlight intensities of up to 2000 watts per square meter. The standard resolution of the sensor is 10 watts per square meter. Using a 10 bit digitizer, the sensor is capable of providing minimum resolution of 2 watts per square meter.

The Pyranometer is available with either a flat base or plug-in mount to fit the RainWise Monopod mounting system. It is manufactured of high stability silicon (detector), aluminum, stainless steel and PVC.

When installed in a RainWise Monopod the sensor utilizes the mounts built-in level When purchased as a separate sensor, a level is attached to the sen- sor housing.

The Pyranometer is covered by a five year warranty.

SOL-PYR?Solar Radiation Pyranometer?Specifications

Range	Wavelengths of from 400-1200 nm
Accuracy	Maximum ± 5% Typical ± 3%
Sensitivity	Typical - 0.5 millivolts / W / m^-2
Linearity	Maximum deviation of 1% up to 1000 W m^-2
Response Time	10 microseconds
Input Voltage	8 to 16 VDC
Temperature Dependence	0.06% per °C maximum
Cosine Correction	Cosine corrected up to 80°?angle of incidence
Operating Temperature	-65°C to +80°C
Operating Humidity	0 to 100%
