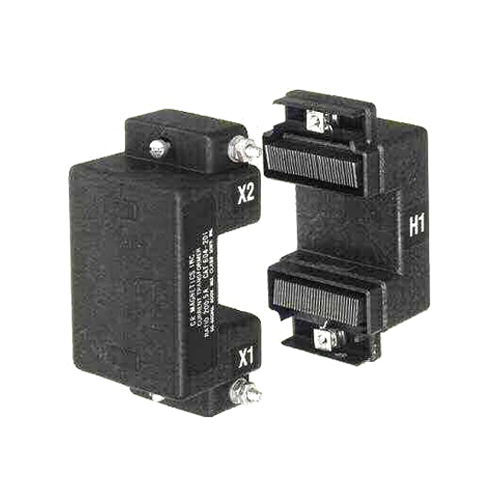

Split-core Current Transformer - 604 Series

Application: Commerical (General Purpose)
Split Core: true
Mount: wire
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Approximate Weight: 2.5 lbs

  • Model Number: 604 Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Split-core Current Transformer
Mouse over image to zoom
Share:

Product Specification

The 604 Series Split Core Current Transformer is designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

The Model 604-1000T is intended for use with high input impedance devices.

The output can be rectified and filtered for devices requiring DC input. The non-linearity and voltage drop of the rectifiers and filters must be considered in the choice of the loading impedance.

604 Series Split-core Current Transformer Features
Terminals: 10-32 brass studs with one flatwasher and two regular nuts
Flexible Leads: UL 1015 105° C, CSA approved, #16 AWG, 24" long unless otherwise specified

604 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor:
  Models 604-101 – 604-401:
   1.33 at 30° C amb
   1.00 at 55° C amb
  Model 604-1000T:
   450A at 30° C amb
   350A at 55° C amb
Approximate Weight: 2.5 lbs

604 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation

604 Series Split-core Current Transformer PART NUMBERS

Part Number
Current Ratio
Burden VA
Accuracy at 60 Hz
604-101
100:5
1.00
±5%
604-1250
125:5
1.00
±5%
604-151
150:5
1.00
±4%
604-1750
175:5
1.00
±3%
604-201
200:5
1.00
±2%
604-251
250:5
2.00
±2%
604-301
300:5
2.00
±1.5%
604-351
350:5
2.50
±1.5%
604-401
400:5
2.50
±1.5%
604-1000T
100:0.1
See Graph
±3%
