Split-core Current Transformer - 606 Series

Application: ANSI (Revenue Grade)
Split Core: true
Mount: wire
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30°C amb., 1.00 at 55°C amb
Weight: 4.5 lbs

  • Model Number: 606 Series
  • Data Sheet: Date Sheet File
Quantity:
- +

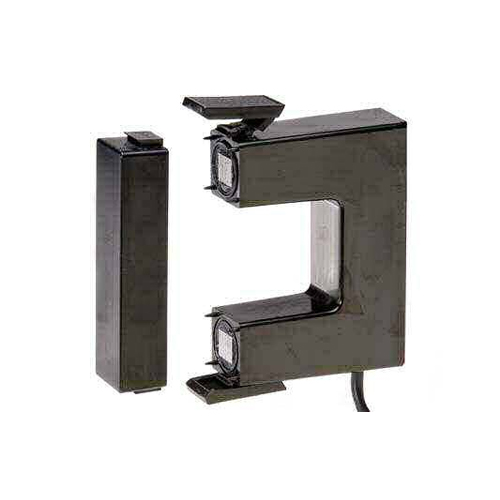

  • Split-core Current Transformer
Mouse over image to zoom
Share:

Product Specification

The 606 Split Core Current Transformers are designed for assembly to an existing electrical installation without the need for dismantling the primary bus or cables.

These current transformers are a weather proof design suitable for use outdoor or in direct burial applications. The transformer cases are UV stabilized thermoplastic and filled with polyurethane resin. The mating surfaces of the transformer cores are protected by a rubber 'O' ring.

606 Series Split-core Current Transformer Features
Secondary Cable: Two No. 16 AWG, 6’ Long, Direct Burial, UV Res. UL Type TC

606 Series Split-core Current Transformer Specifications
Frequency: 50-400Hz
Insulation Level: 0.6 kV, BIL 10 kV full wave
Continuous Thermal Current Rating Factor: 1.33 at 30°C amb., 1.00 at 55°C amb
Weight: 4.5 lbs

606 Series Split-core Current Transformer Applications
For Energy Management Systems and Instrumentation Equipment

606 Series Split-core Current Transformer PART NUMBERS

Part Number
Current Ratio
Burden VA
ANSI Metering Class at 60Hz
606-201
200:5A
2.5 1%
606-251
250:5A
3.0 1%
606-301
300:5A
3.5 1%
606-351
350:5A
4.0 1%
606-402
400:5A
5.0 1%
606-501
500:5A
6.0 1%
606-601
600:5A
8.0 1%
606-751
750:5A
10.0 1%
606-801
800:5A
12.0 1%
606-102
1000:5A
15.0 1%
606-122
1200:5A
20.0 1%
